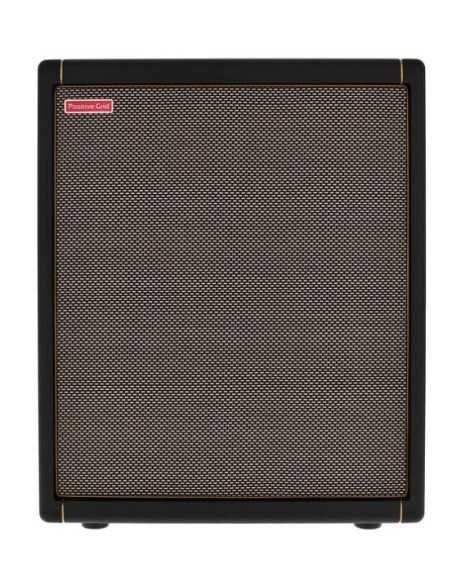

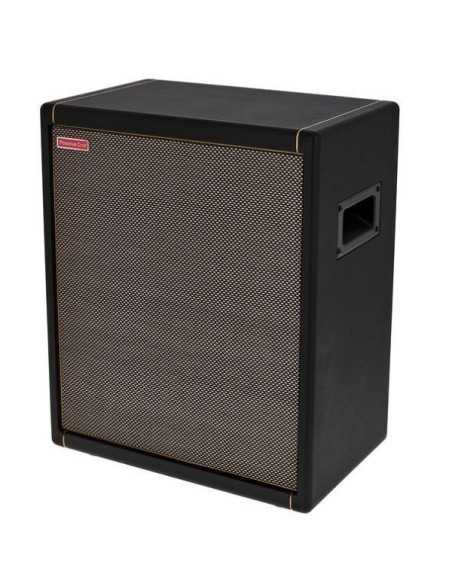

140-Watt Class D Powered FRFR Speaker Cabinet
140-Watts of ferocious power, custom-designed to maximize Spark smart guitar amps.¹ Plug in. Get loud.
Spark CAB is compact enough to fit anywhere with high-quality sound big enough to blow the doors down. Live performances. Recording sessions. Home practice. CAB has you covered.
Spark CAB features a 10-inch woofer and 2 high-frequency dome tweeters, powered by a built-in 140-Watt Class D amplifier. Get clear and accurate dynamic sound reproduction, with full range flat response (FRFR).
With plenty of power and headroom, CAB delivers authentic feel and high volume output. Precise and transparent audio reproduction allows players to hear every nuance, capturing the intricate details of every guitar tone.
Crafted for guitarists who crave reliability and style as much as sonic excellence. Spark CAB achieves this, equally at ease on stage and in your living room.
Spark CAB is packed with convenient, intelligently designed features, making your journey from setup to performance a breeze.
A dedicated 3.5mm stereo input connects Spark smart guitar amps (Spark/MINI/GO), cable included.
Stereo combo XLR/TRS inputs and a balanced XLR output are perfect for connecting to other gear.
Engage the contour switch to emphasize low and high frequencies for a better sound balance at low volume.
The ground lift switch reduces unwanted hum or noise.
DC POWER | USB-C OUTPUT
Spark CAB is a power hub. With a DC power output and a USB-C output, you can connect your Spark (Spark, MINI or GO), tablet or phone. No other power source needed.
Designed to complement your Spark series amp, Spark CAB is constructed from rugged, high-quality materials, including matching tolex and grille cloth. Easy to transport, Spark CAB provides durable portability and a compact footprint.
Spark CAB sounds so good, you’ll want to use it for your electric, acoustic and bass, too. With a full audio spectrum from 45-20,000 Hz, Spark CAB delivers great tone for all guitars.
Spark CAB is optimized for Spark series amps,¹ with a dedicated input that perfectly aligns with Spark’s sonic output. But you can use it for any other modeler, instrument or amp with a direct out.² Plug ‘em in for gig-level sound anywhere.
FREQUENCY RANGE: 45-20,000 Hz
STEREO/MONO: MONO
MAXIMUM SOUND PRESSURE LEVEL: 117 dB (RMS), 120 dB (Peak)
CABINET PRINCIPLE: Bass Reflex
POWER AMPLIFIERS: 140W (RMS), 400W (Peak) Class D
SPEAKERS: 1x10-inch woofer, 2x1-inch (25mm) tweeter
TOTAL IMPEDANCE: 4 ohms

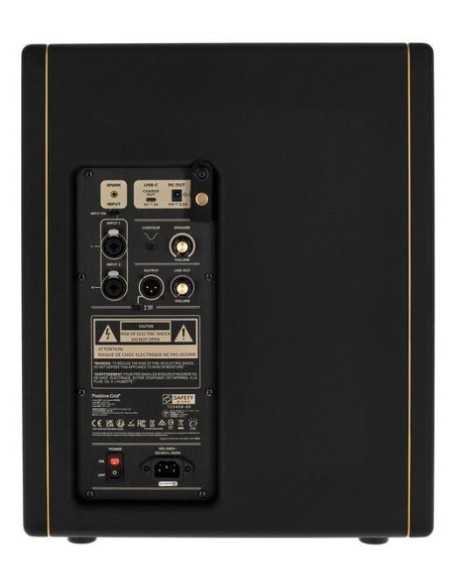

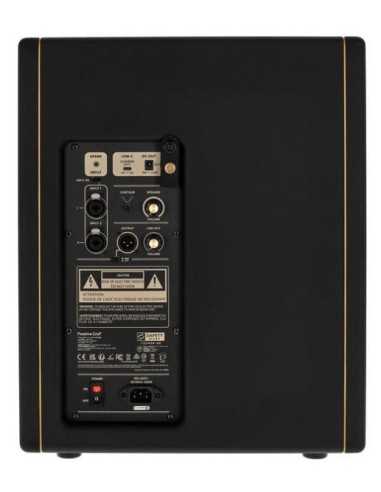

BACK PANEL CONTROLS
Input Selector - Switch between the 3.5 mm Spark Input and the two mono XLR/TRS Combo Inputs
Speaker Volume
Line Out Volume
Ground Lift Switch
Contour Switch - Boosts low and high frequencies to improve balance at low volumes
WIRED CONNECTIVITY
1 x 1/8" dedicated stereo Input for Spark Amp
2 x mono XLR/TRS combo inputs
1 x mono XLR balanced output
DIMENSIONS: 492.5 x 399.8 x 255 mm (with rubber feet) (19.39 x 15.74 x 10.04 in)
WEIGHT: 13.5 kg 29.76 lbs
GRILLE CLOTH: Woven
Handle: 2 recessed speaker handles on the sides
Cable Tie: 1 adjustable cable tie for fixing instrument and audio cables on the back

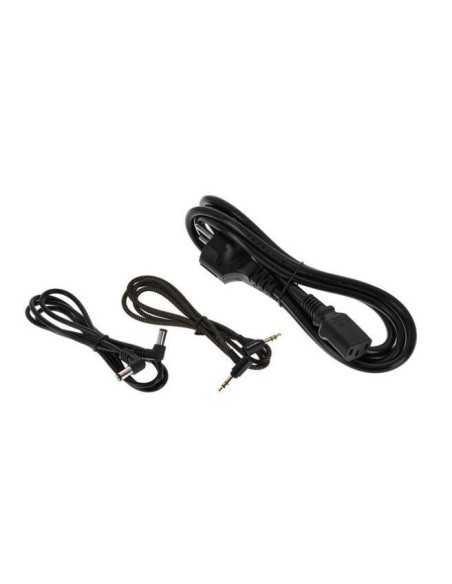

BOX CONTENTS
3.5mm stereo audio cable for Spark amps
DC power cable for Spark
Power cord
Quick Start Guide
Safety Instructions Card
MAIN INPUT POWER: AC 100-240V
DC POWER OUTPUT For Spark: DC 19V/2.5A
USB-C POWER OUTPUT For Spark MINI & GO: DC 5V/2A
