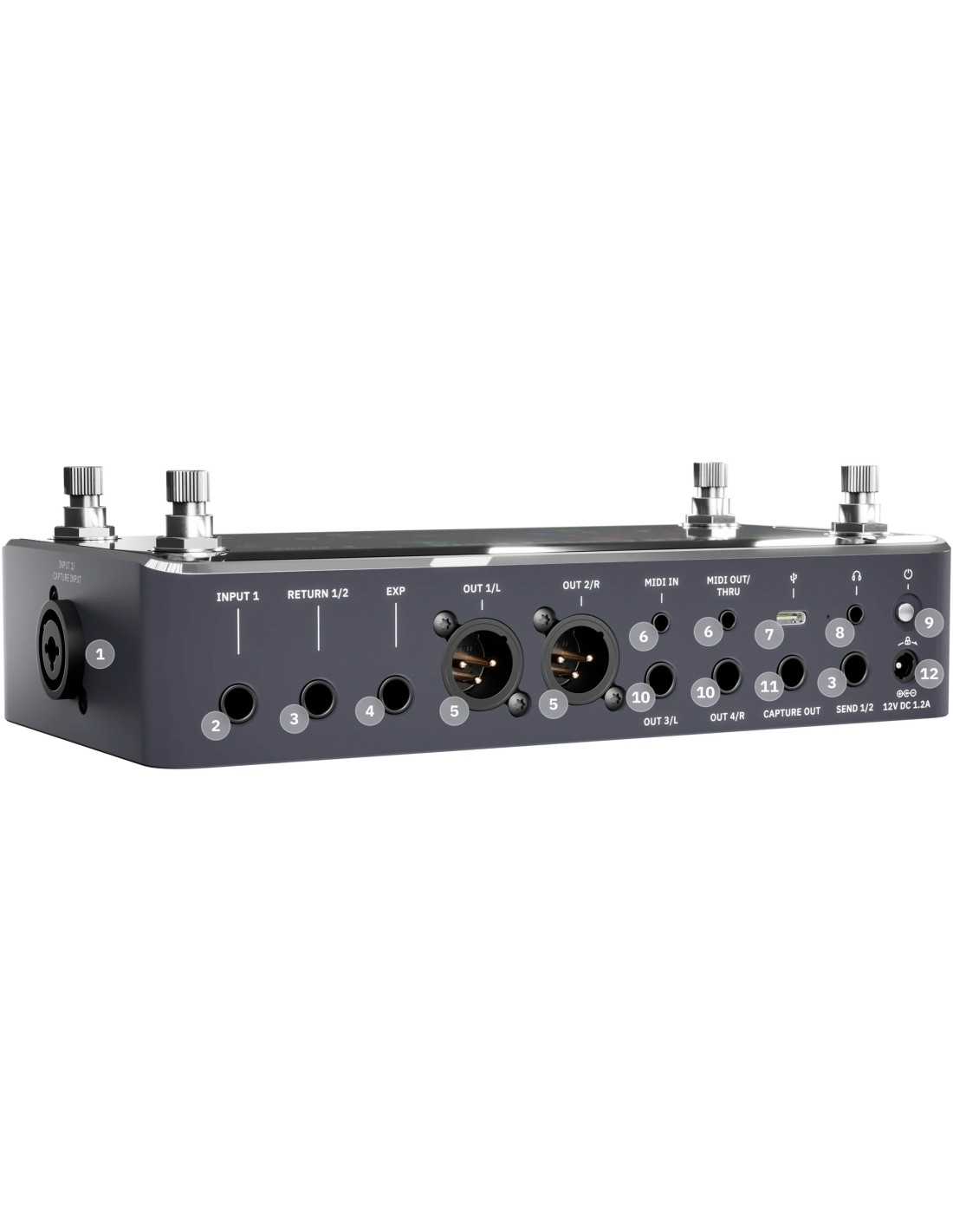

Input 2 / Capture Input Combo XLR and 1/4" TRS input with dedicated level control and phantom power. Accepts instruments or microphones and is used for creating Neural Captures.
Input 1 Standard 1/4" TS instrument input.
Dual Effects Loops Send 1/2 and Return 1/2 share 1/4" TRS connections. Use a standard TRS cable for Loop 1 or a TRS insert cable (TRS to dual TS) to access both FX loops.
Expression Input 1/4" TRS input for connecting an expression pedal to control parameters such as volume, wah, pitch, or effects. A second expression input is available via MIDI.
XLR Outputs Two mono, balanced XLR outputs.
MIDI In & Out/Thru 1/8" TRS MIDI Type-A for receiving and sending MIDI messages, automation, and external device control.
USB-C Connects to a computer and functions as an 8-in / 8-out multichannel USB audio interface for recording and re-amping.
Headphones Output 1/8" TRS headphone output for silent practice and monitoring.
Power Switch Dedicated mechanical power switch.
TS Outputs Two 1/4" TS outputs for flexible routing options.
Capture Output Dedicated output for creating Neural Captures.
Power Input 12 V DC, 1.2 A, center-negative locking 2.1 / 5.5 mm connector. Power supply included, with an adapter for compatibility with standard pedalboard power supplies. Power-on behavior can be set to automatic or manual using the power switch.
