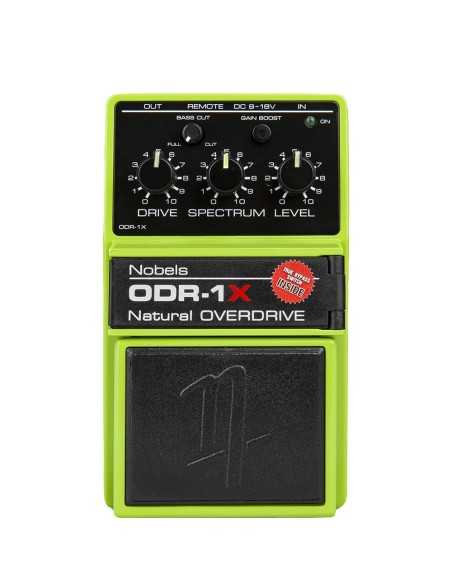

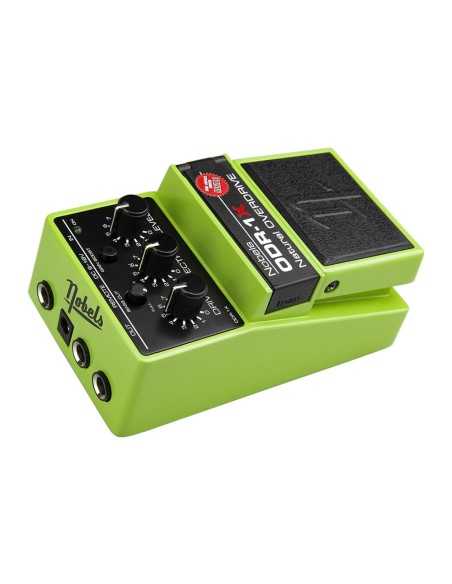

Nobels ODR-1X

The Nobels ODR-1X takes the legendary ODR-1 overdrive pedal to the next level with advanced features and enhanced flexibility. This updated version includes a seamless external bass cut knob for precise low-end control, a new switchable gain boost for high-gain settings, and a choice between true bypass or buffered bypass for optimal signal integrity in any setup.

Designed for professionals, the ODR-1X features the innovative Spectrum Tone control, which simultaneously adjusts low-mid and high frequencies for versatile tonal shaping. It also includes glow-in-the-dark knobs for stage convenience and integrated Mounty-P Mounting Plates for secure pedalboard attachment.

The ODR-1X supports remote control functionality for bypass and gain boost via its TRS connection, making it a powerful addition to any rig. Operable with 9V DC for standard use or 18V DC for increased dynamic headroom, this pedal ensures consistent performance in any environment.

Key Features:

• External Bass Cut Knob: Adjust low-end response with ease.
• Spectrum Tone Control: Dual-filter control for bass and treble.
• Gain Boost Switch: Optional high-gain settings with remote control option.
• Bypass Options: Selectable true bypass or buffered bypass for flexibility.
• Remote Control: TRS connection for bypass and gain boost switching.
• Power Requirements: 9-18V DC, center negative (power supply not included).
• Durability: Rugged design with glow-in-the-dark knobs for stage use.
• Mounting Plates: Integrated Mounty-P Mounting Plates for easy pedalboard setup.

Specifications:

• Bypass: Selectable true bypass or buffered bypass
• Controls: Drive, Spectrum, Level, Bass Cut, Gain Boost
• Power Consumption: 9-18V DC, 15 mA (power supply sold separately)
• Dimensions: H: 5.4 cm, W: 7.4 cm, D: 12.6 cm
• Weight: 418 g

The Nobels ODR-1X retains the signature warmth and versatility of the ODR-1 while incorporating modern updates for today’s demanding guitarists.
