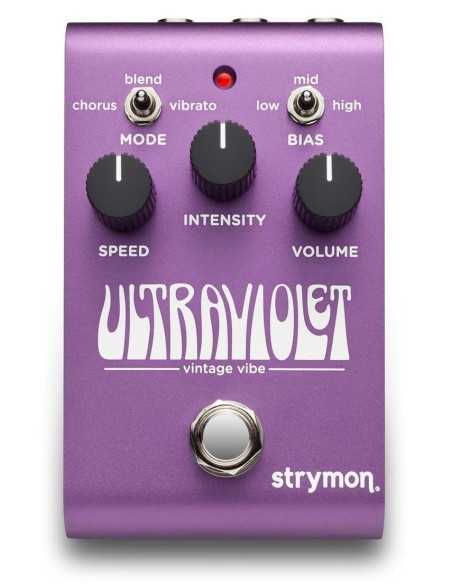

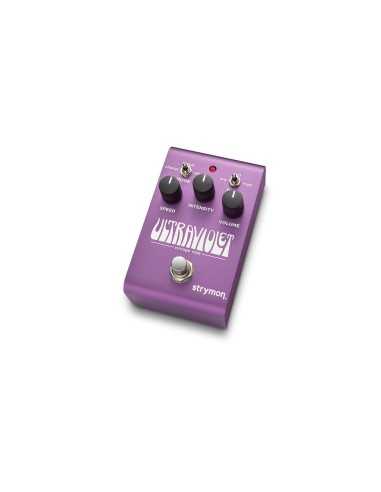

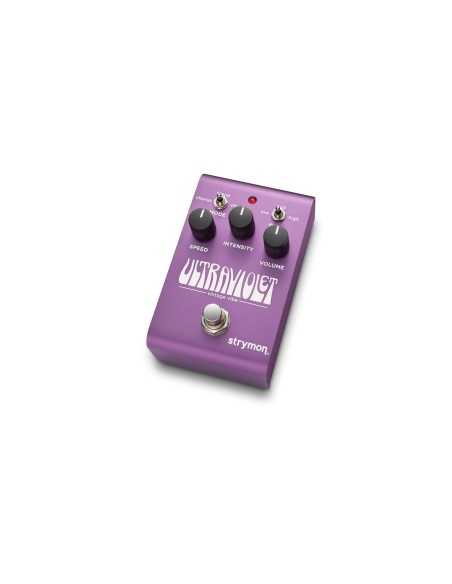

Strymon UltraViolet

Ins, Outs, and Switches

• High impedance ultra low-noise discrete Class A JFET TRS stereo input.
• Low impedance TRS stereo output.
• Expression pedal input allows the connection of a TRS expression pedal, MiniSwitch,
MultiSwitch Plus, or TRS MIDI connection.
• USB jack for controlling via MIDI from a computer or for performing firmware updates.

Audio Quality

• Premium JFET analog front end
• Super low noise, high performance 24-bit 96kHz A/D and D/A converters provide
uncompromising audio quality
• High Performance 520MHz ARM Superscalar processor
• 32-bit floating point processing
• 20Hz to 20kHz frequency response
• Typical signal to noise ratio: 116dB
• Audio Input Impedance: 1M Ohm
• Audio Output Impedance: 100 Ohm

More

• Strong and lightweight anodized aluminum chassis
• Power requirements: maximum 9 volts DC center-negative, with a minimum 250mA of
current. (Adapter sold separately.)
• Dimensions:
4.5” deep x 1.7” wide x 2.2” tall
11.43 cm deep x 4.32 cm wide x 5.59 cm tall
• Designed and built in the USA
