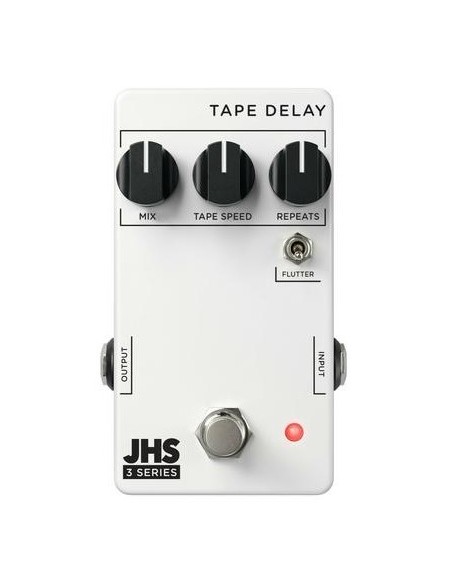

Classic Tape Delay, Simplified
From the legendary Echoplex to the iconic Space Echo, tape delay has shaped the sound of music for decades. The JHS 3 Series Tape Delay pays homage to these classic units, delivering warm, analog-style repeats with adjustable tape speed, feedback, and a flutter toggle to capture the unpredictable beauty of real tape machines.
Key Features
- Authentic tape delay emulation with warm, vintage-style repeats
- Tape Speed control simulates the motor fluctuations of classic units
- Repeats knob adjusts from a single echo to cascading delays
- Flutter toggle adds natural tape modulation and warble
- True bypass for pure signal integrity
- Compact, road-ready metal housing
- Simple three-knob layout for intuitive control
Detailed Technical Specifications
Audio Processing
- Classic tape delay character with natural degradation and warmth
- Tape Speed control adjusts delay time and simulates motor fluctuations
- Repeats control sets the number of echoes, from slapback to long trails
Effect Processing
- Flutter toggle introduces subtle modulation, warble, and pitch drift
- Tape-style degradation mimics vintage wear over multiple repeats
Signal Chain & Routing
- True bypass ensures a clean signal when the pedal is disengaged
Inputs & Outputs
- 6.3 mm mono input & output jacks for standard pedalboard integration
Power & Build
- 9V DC power via 2.1 mm x 5.5 mm center-negative adapter (not included)
- Current draw: 65 mA
- Dimensions: 112 x 60 x 31 mm / 4.42" x 2.38" x 1.22"
- Weight: Approx. 210 g / 0.46 lbs
- Sturdy metal enclosure for durability
Perfect for Every Setup
Whether you're chasing rockabilly slapback, psychedelic ambience, or lush, atmospheric delays, the JHS 3 Series Tape Delay delivers. Its intuitive controls make it easy to dial in vintage tape echoes that enhance any playing style.
Conclusion
With its faithful tape-style repeats, dynamic modulation, and intuitive layout, the JHS 3 Series Tape Delay brings legendary delay tones into a modern, affordable package. Experience the magic of classic tape delay—without the hassle of real tape machines.
