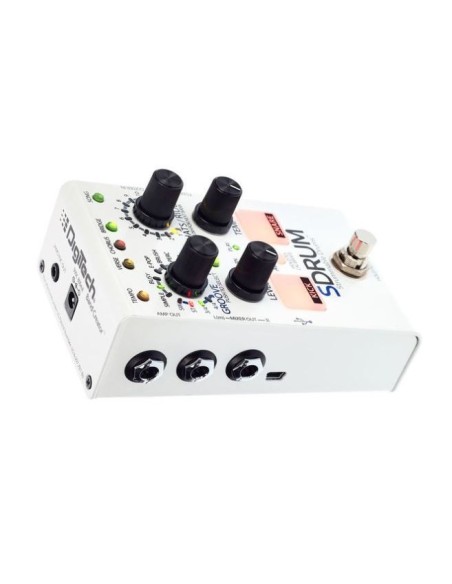

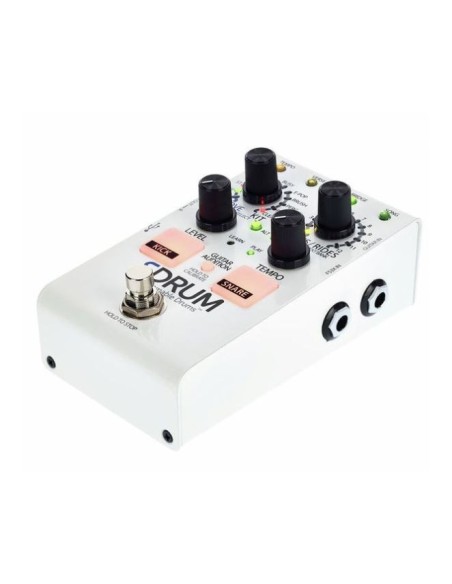

The DigiTech SDrum is a revolutionary pedal that transforms your guitar into a beat-making machine. Using BeatScratch™ Technology, it intuitively translates your strumming into dynamic drum grooves, making it the perfect songwriting and performance tool. No programming, no menus—just strum, and SDrum plays along!
Key Features
- BeatScratch™ Technology – Strum your strings, and SDrum creates a kick-snare pattern instantly.
- Multi-Part Song Structure – Build songs with up to 3 different sections (Verse, Chorus, Bridge).
- Customizable Drum Kits – Choose from 5 different kits and groove variations.
- Intelligent Dynamics – Adjust embellishments and intensity for natural transitions.
- Hands-Free Operation – Use a footswitch to control playback seamlessly.
- High-Quality Audio – 24-bit sound with 44.1 kHz sampling rate for studio-grade performance.
- JamSync™ Compatibility – Sync with other DigiTech pedals for extended jamming.
- USB Connectivity – Save and transfer your beats via USB.
Detailed Technical Specifications
Audio Processing
- Bit Depth: 24-bit
- Sample Rate: 44.1 kHz
- Signal-to-Noise Ratio: ≥108 dB (A-weighted)
- THD + Noise: 0.004% @ 1 kHz
Effect Processing
- Groove Customization: 3 intensity levels per song part (simple to busy)
- Drum Kits: 5 selectable drum kits
Signal Chain & Routing
- JamSync™: 1/8" TRS output for syncing with other DigiTech pedals
- Real-Time Beat Creation: Responsive to guitar strumming patterns
Inputs & Outputs
- Guitar Input: 1/4" TS, 1 MΩ impedance
- FS3X Footswitch Input: 1/4" TRS (compatible with DigiTech FS3X)
- Amp Output: 1/4" TS, 1 kΩ impedance
- Mixer Outputs: 1/4" TRS, impedance balanced, max +19 dBu
- JamSync Output: 1/8" TRS
USB Audio Interface
- Port Type: Mini-B USB 2.0
- Functionality: Save and manage songs via USB
Looper & Rhythm Features
- Maximum Bars: 4 per song part
- Maximum Parts: 3 per song
- Maximum Songs: 36 stored onboard

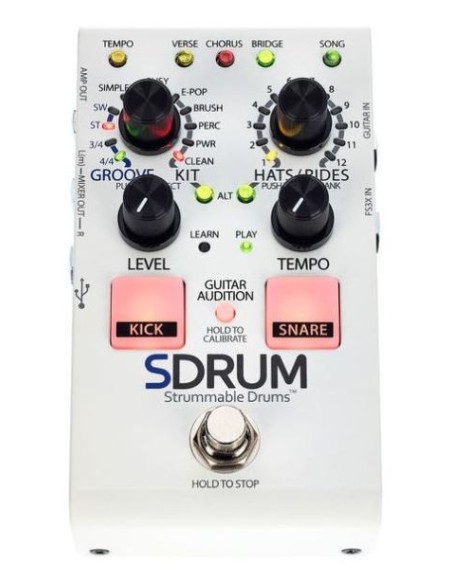

Control & Display
- Controls: Groove/Kit, Hats/Rides, Level, Tempo
- Backlit Buttons: Tempo, Verse, Chorus, Bridge, Song, Alt (Kit), Alt (Hats/Rides), Guitar Audition
- Pads: Kick, Snare
- Footswitch: Main footswitch
Power & Build

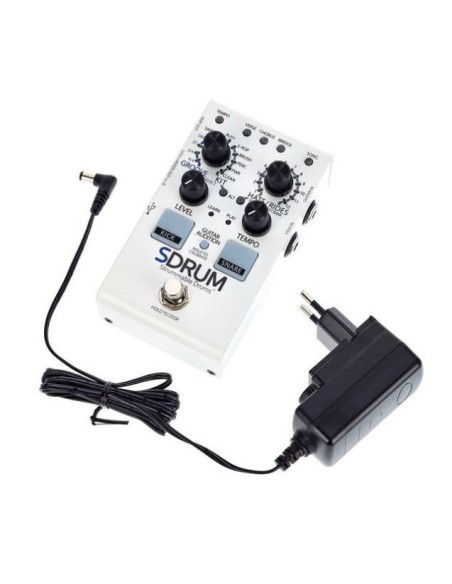

- Power Supply: 9V DC external adapter (PS0913DC-04)
- Power Consumption: <5W
- Current Draw: 500 mA
- Dimensions: 133.4mm (L) x 76.2mm (W) x 62.2mm (H)
- Weight: 0.52 kg (unit), 0.87 kg (shipping)
Perfect for Every Setup
The DigiTech SDrum is the ideal companion for songwriters, live performers, and guitarists looking to add realistic drum grooves without needing a separate drummer. Whether you're crafting new music at home, jamming with a band, or performing solo, SDrum keeps up with you—just strum and play!
Conclusion
With the DigiTech SDrum, creating drum tracks is as natural as strumming your guitar. It’s the ultimate beat-making tool for guitarists who want instant, professional-sounding drums with zero hassle. Say goodbye to tedious programming and start playing with realistic, responsive drums today!
