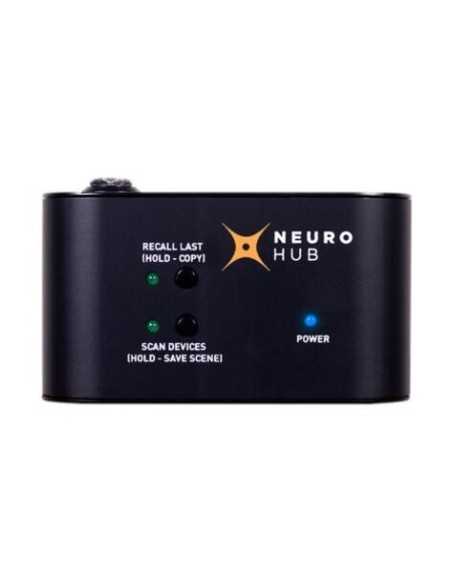

Source Audio SA164 Neuro Hub

Connect the Dual Expression Pedal and the Hot Hand Wireless Effect Controller to the Hub and assign external control to any pedal on your board. Each scene can contain any number of external control configurations, including simultaneous Hot Hand and Expression Pedal control of multiple parameters on multiple pedals.

Connect the Hub to a PC, Mac, or iPad (with a camera kit) via the USB port, for updates, saving and editing presets, and much more. The Hub also includes a 9V DC power adapter, three 1/8” sensor cables and one mini-USB cable.

SPECS:

- MIDI Interface / Port Expander for Source Audio products
- controls up to 5 Source Audio One Series and Soundblox 2 pedals simultaneously
- 128 multi-pedal Scenes presets programmable
- presets accessible via MIDI Program changes and editable via USB port to Mac or PC
- compatible (except for scene saving) with Source Audio Soundblox 1 and Soundblox Pro
- Status LEDs
- control buttons for Recall Last/Copy and Scan Devices/Save Scene)

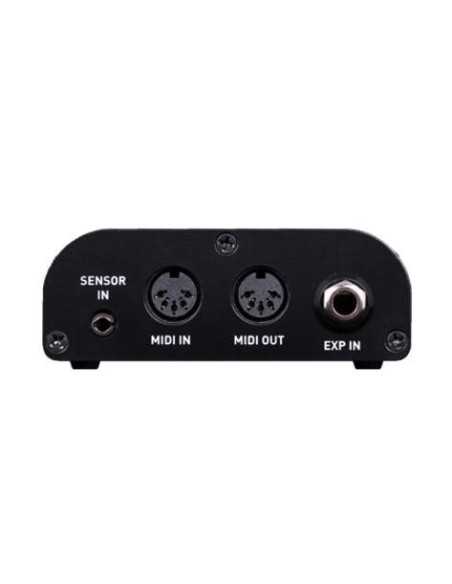

- standard 5-pin MIDI IN and OUT/THRU
- passive Expression input, and Hot Hand® Sensor Input
- stereo 6.3 mm plug, tip hot, 10k-50k Ohm resistance, linear type expression pedal input
- Mini-USB port

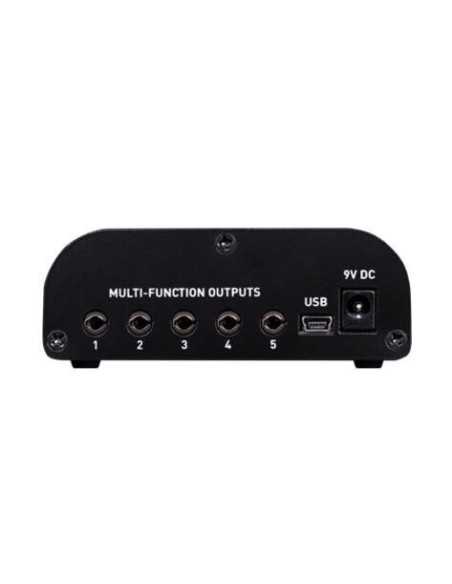

- 5 x 4 conductor 3.5mm plug Multi-Function outputs
- 3.5 mm Sensor input for Hot Hand
- power supply via included 9V DC adapter 2.1 mm x 5.5 mm barrel plug, polarity (-) center
- current draw 40mA (up to 80mA with Hot Hand accessories)
- dimensions (W x L x H) 96 x 53 x 35 mm
- weight 170 g
- system requirements Windows Vista, 7, 8, 8.1 or 10
- system requirements Mac 10.7, 10.8, 10.9, 10.10 or 10.11
