Truetone 1 Spot Pro CS-6

Multiple Pedal Power

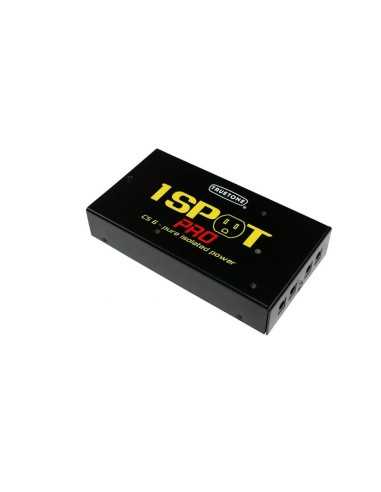

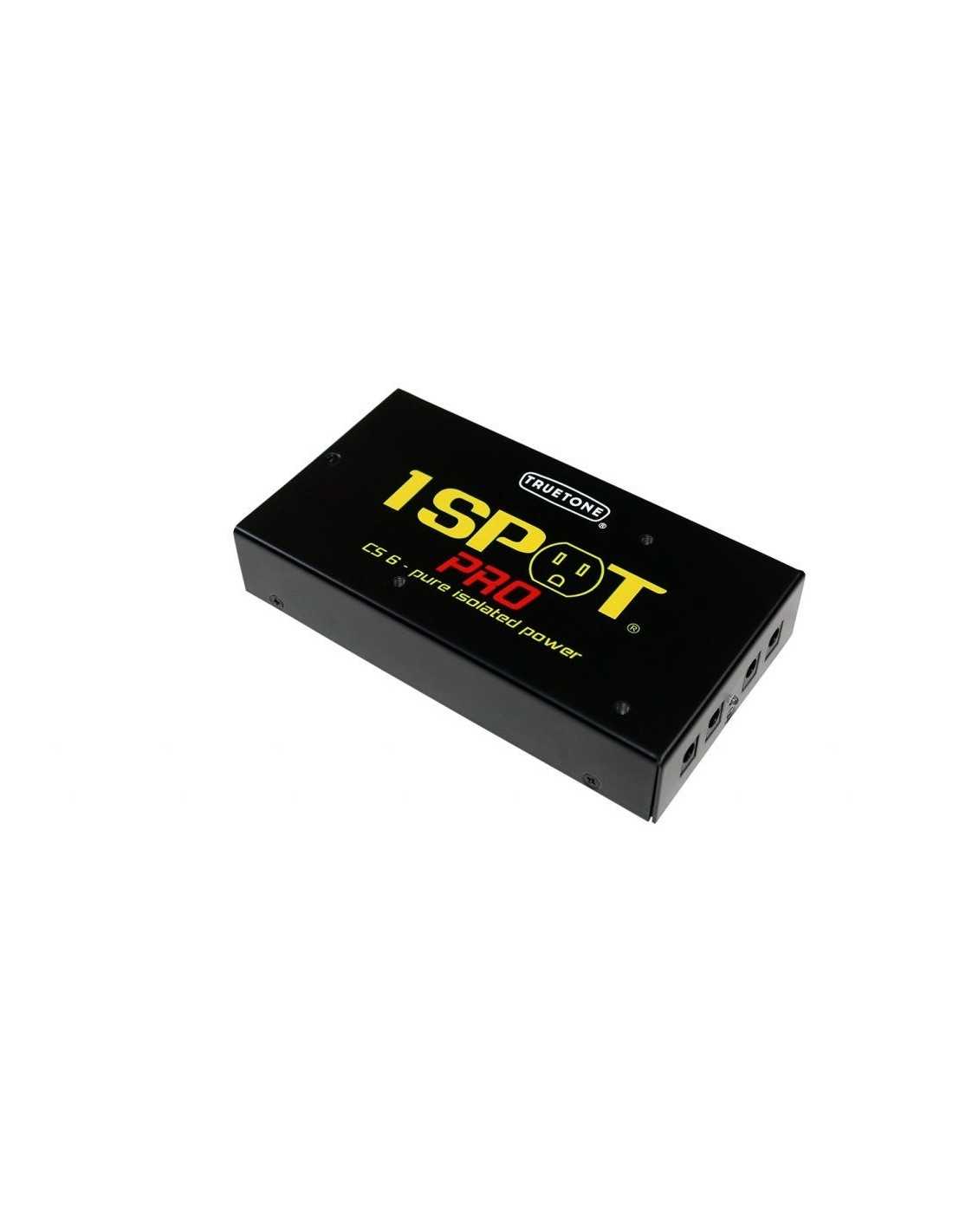

The Truetone Spot Pro CS6 provides power for up to 6 pedals in a compact and low-profile unit, designed to fit on smaller pedalboards or be top-mounted. Each output is isolated, filtered, and free of noise giving you true professional operation in noisy electrical environments. It follows on from the 3 years of development that Truetone took to design their first power supply.

Powers Almost All Pedals

With its many different included cables and adapters, the Truetone CS6 can supply power to almost any pedal on the market. It outputs can be switched through multiple voltages, including 9/12/18v. Two outputs provide a super-high 500mA output at 9v so can be used to power your high current-draw effects pedals that would usually require their own supply.

Superior Technology

The Truetone CS6 uses a custom-designed switching power supply that can handle far more current (power being pulled out of it) than any transformer-based power supply. This gives it a max of 1600mA DC to play with; an astonishing figure from such a small and portable unit. It also allows multiple voltage inputs so provides use in different countries.

Features:

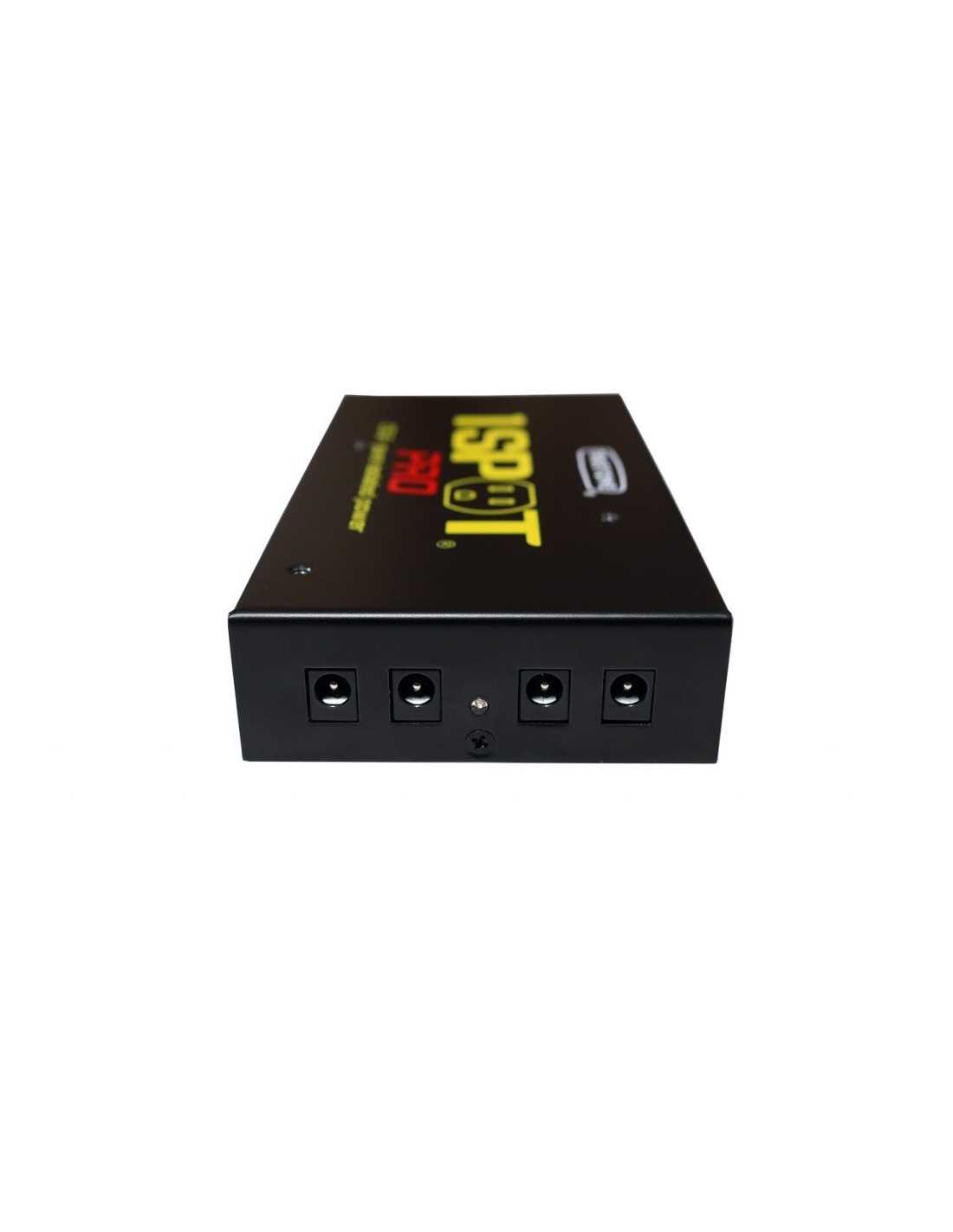

• 6 isolated outputs for effects pedals
• Multiple input voltage range from 100-240v
• 2 ouputs capable of 9v 500 mA output for high current-draw pedals
• 2 output switchable from 9 to 12v
• 2 outputs switchable from 9 to 18v
• Slim low-profile design is perfect for small pedalboards or top-mounting
• Fully isolated, regulated and filtered outputs

Specifications:

• Dimensions: 88 x 160 x 31mm (3.46 x 6.30 x 1.22'')
• Weight: 0.59kg
• Power: 100-240V ac
• Included Power Cables (all are center pin negative polarity):
  • (1) DC26 (5.5 x 2.1mm barrel plugs; 26'' (660mm) – Purple
  • (1) DC22 (5.5 x 2.1mm barrel plugs; 22'' (559mm) – Blue
  • (1) DC18 (5.5 x 2.1mm barrel plugs; 18'' (457mm) – White
  • (3) DC12 (5.5 x 2.1mm barrel plugs; 12'' (305mm) – Yellow
  • (1) MC2 Two 5.5 x 2.1mm barrel plugs with 5.5 x 2.1mm input socket.
• Converter Plugs:
  • (1) CL6 – (5.5 x 2.1mm barrel input, 5.5 x 2.5 barrel output; reverse polarity)
  • Green – for Line 6 DL4/M9/etc. and some Eventide pedals.
  • (1) CYR – (5.5 x 2.1mm barrel input, 5.5 x 2.1 barrel output; reverse polarity)
  • Red – reverse polarity converter
  • (1) C35 – (5.5 x 2.1mm barrel input, 3.5mm male output; tip positive)
  • Black – 3.5mm (1/8'') plug converter
  • (1) CBAT – (5.5 x 2.1mm barrel input, Black battery clip output) Connects to battery clip wires inside pedals that do not have DC jacks. Do NOT connect to a battery!

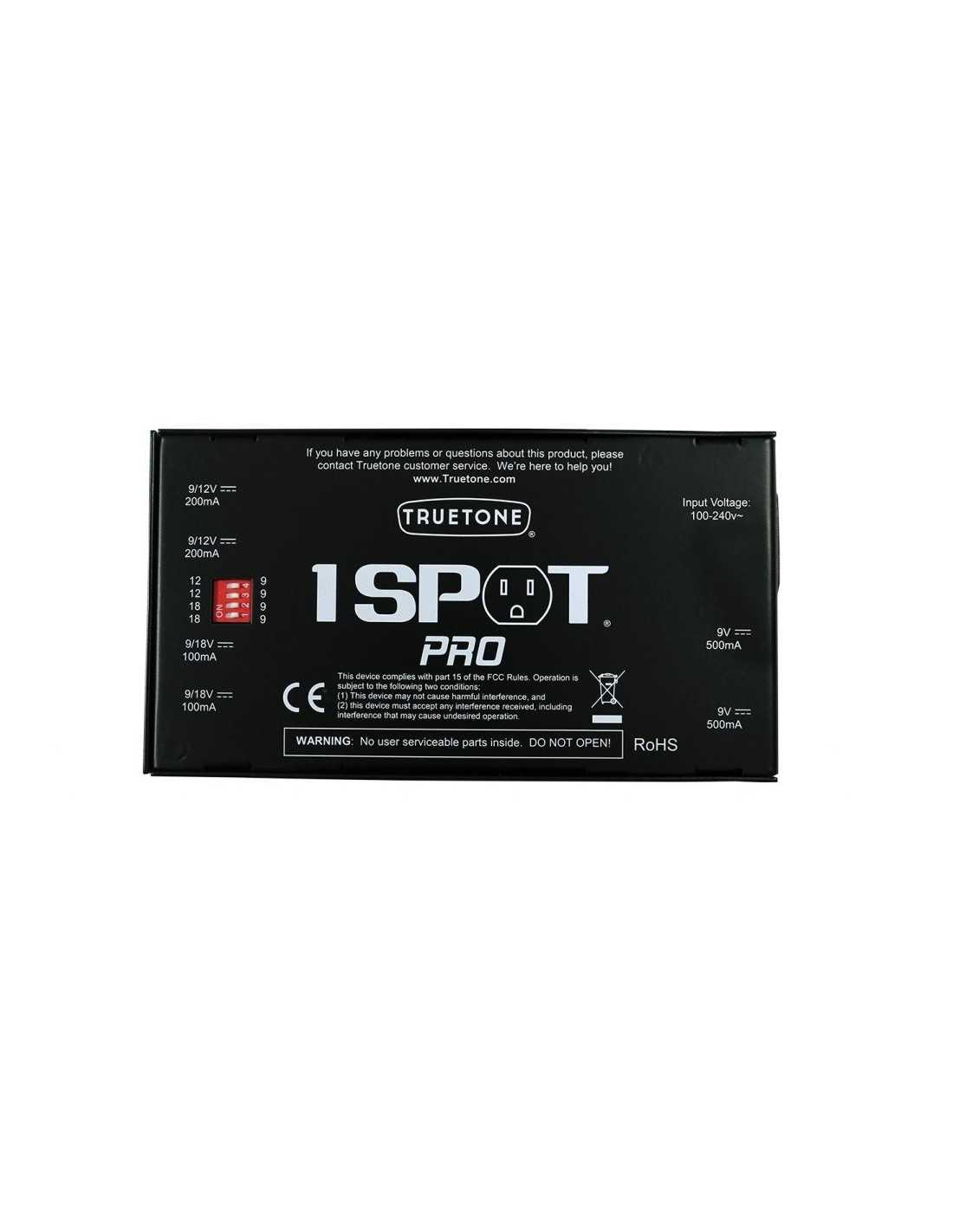

• Ouput Voltages:
  • Outputs 1-2: 9VDC (500mA)
  • Outputs 3-4: 9VDC or 18VDC (100mA)
  • Outputs 5-6: 9VDC or 12VDC (200mA)
