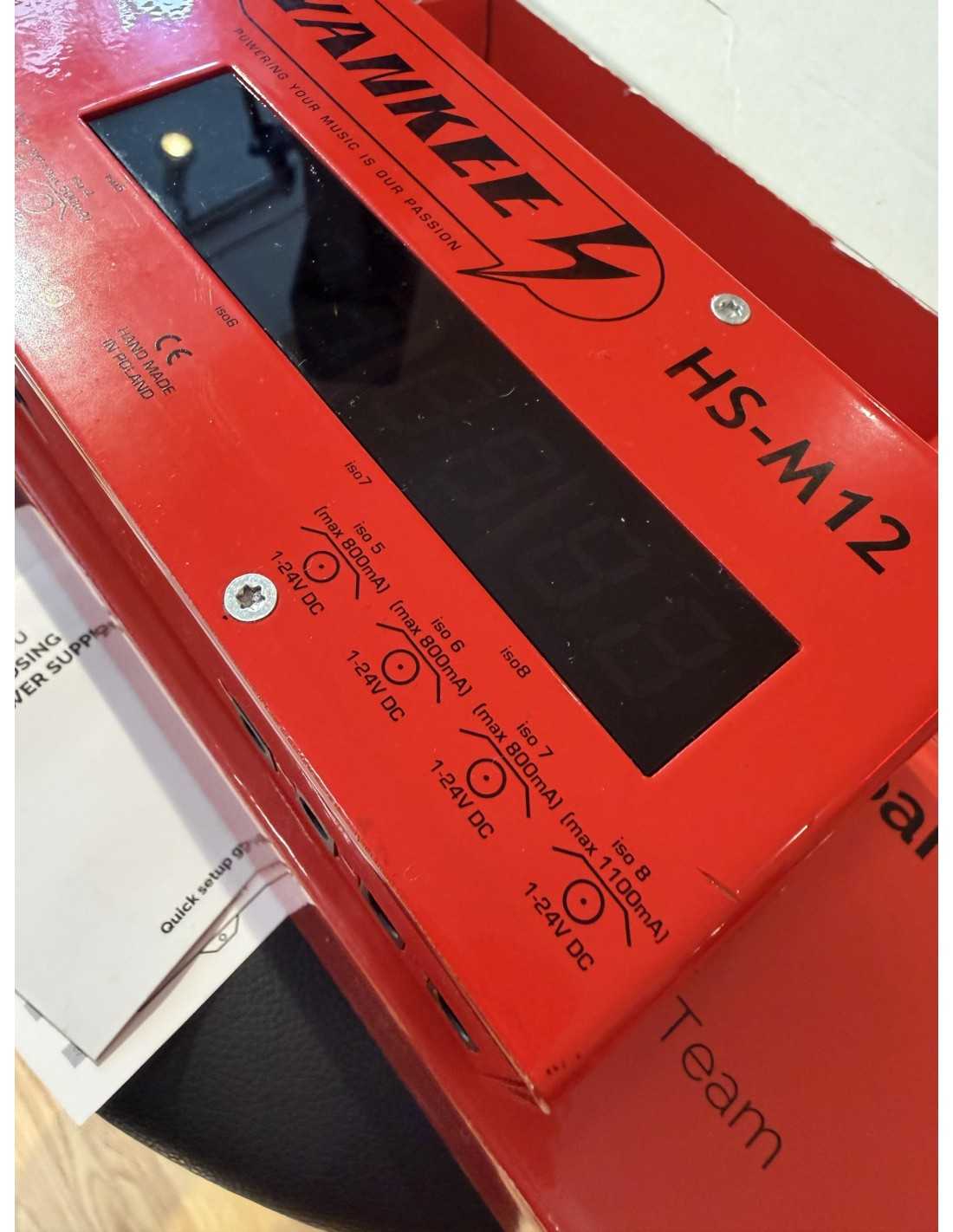

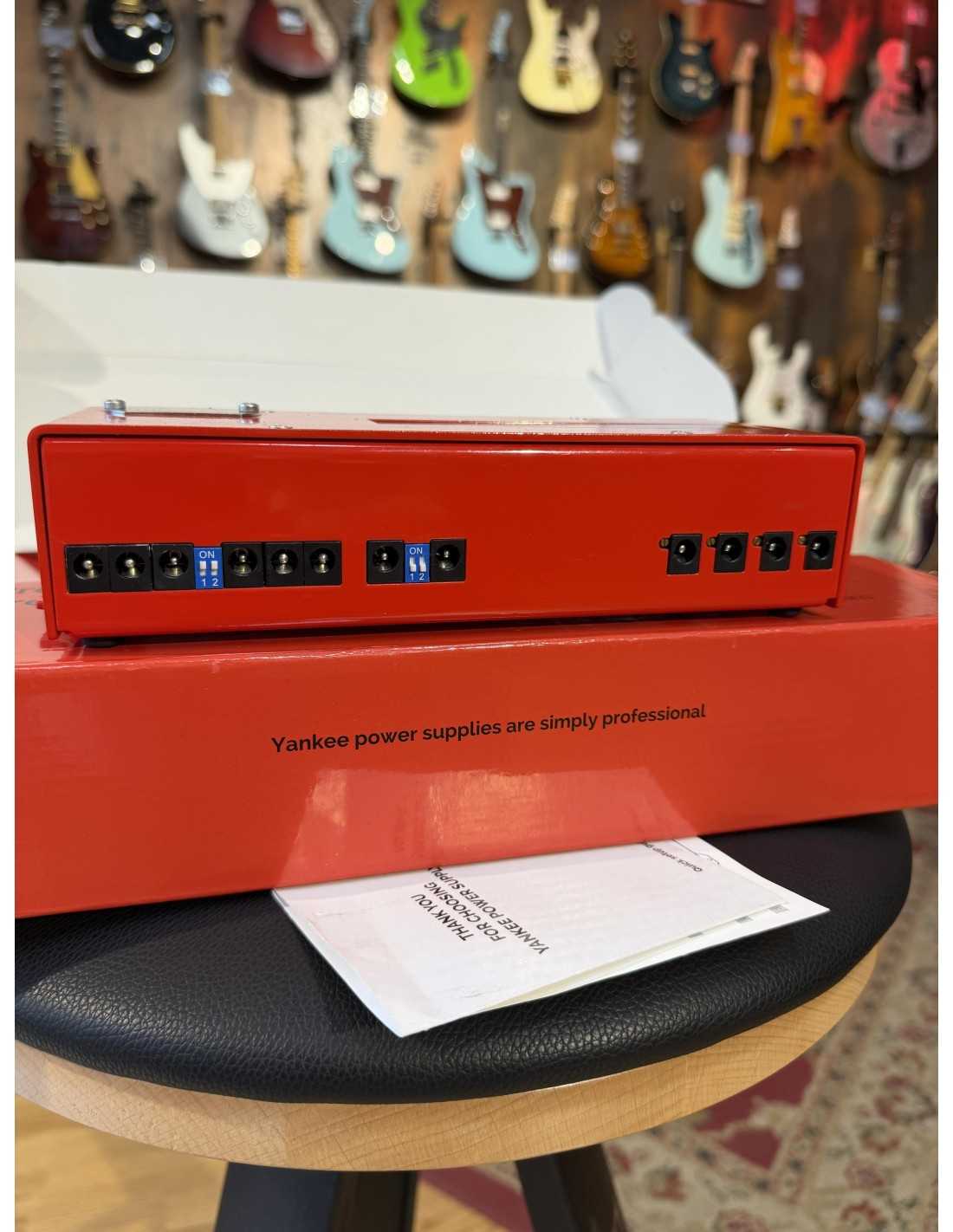

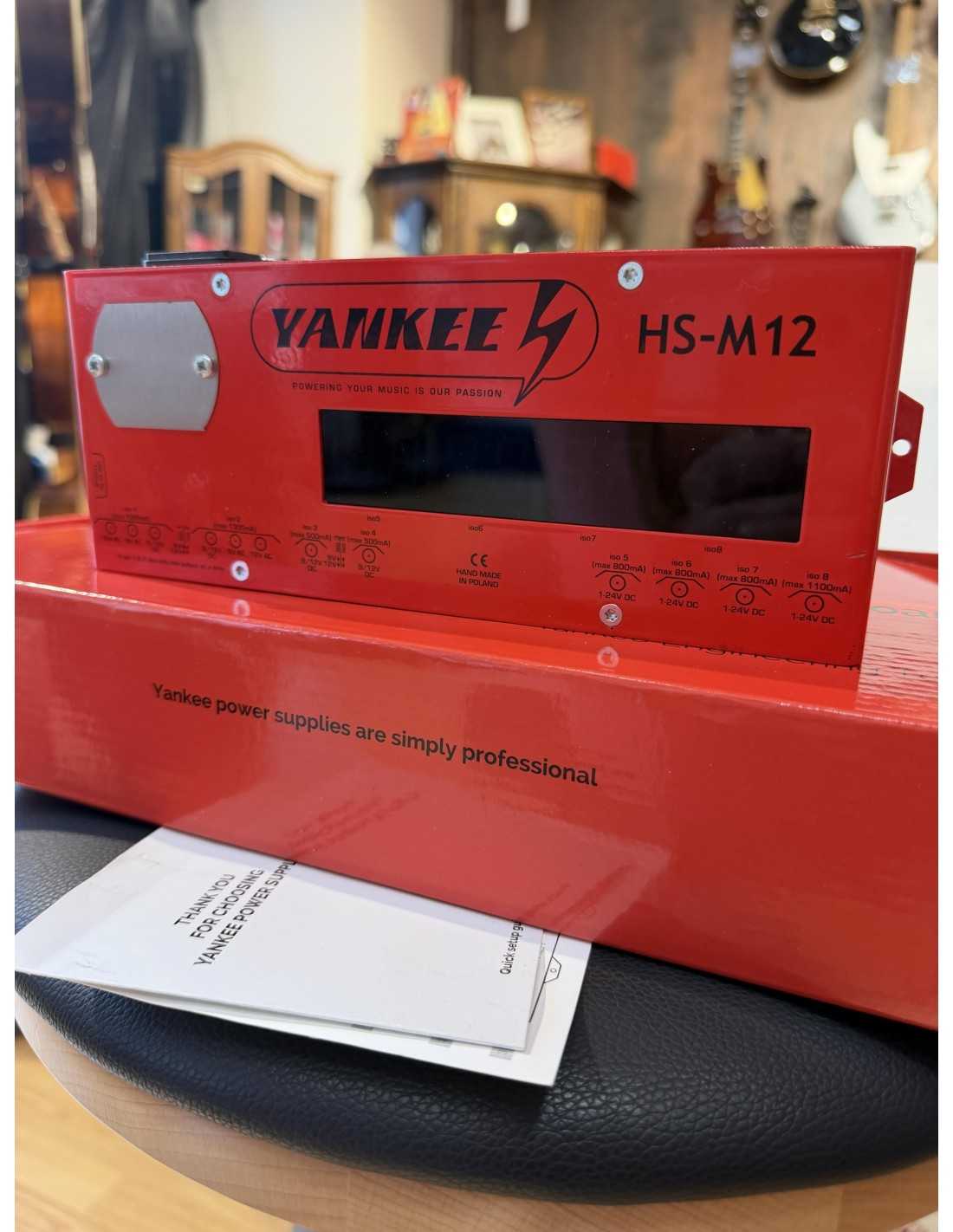

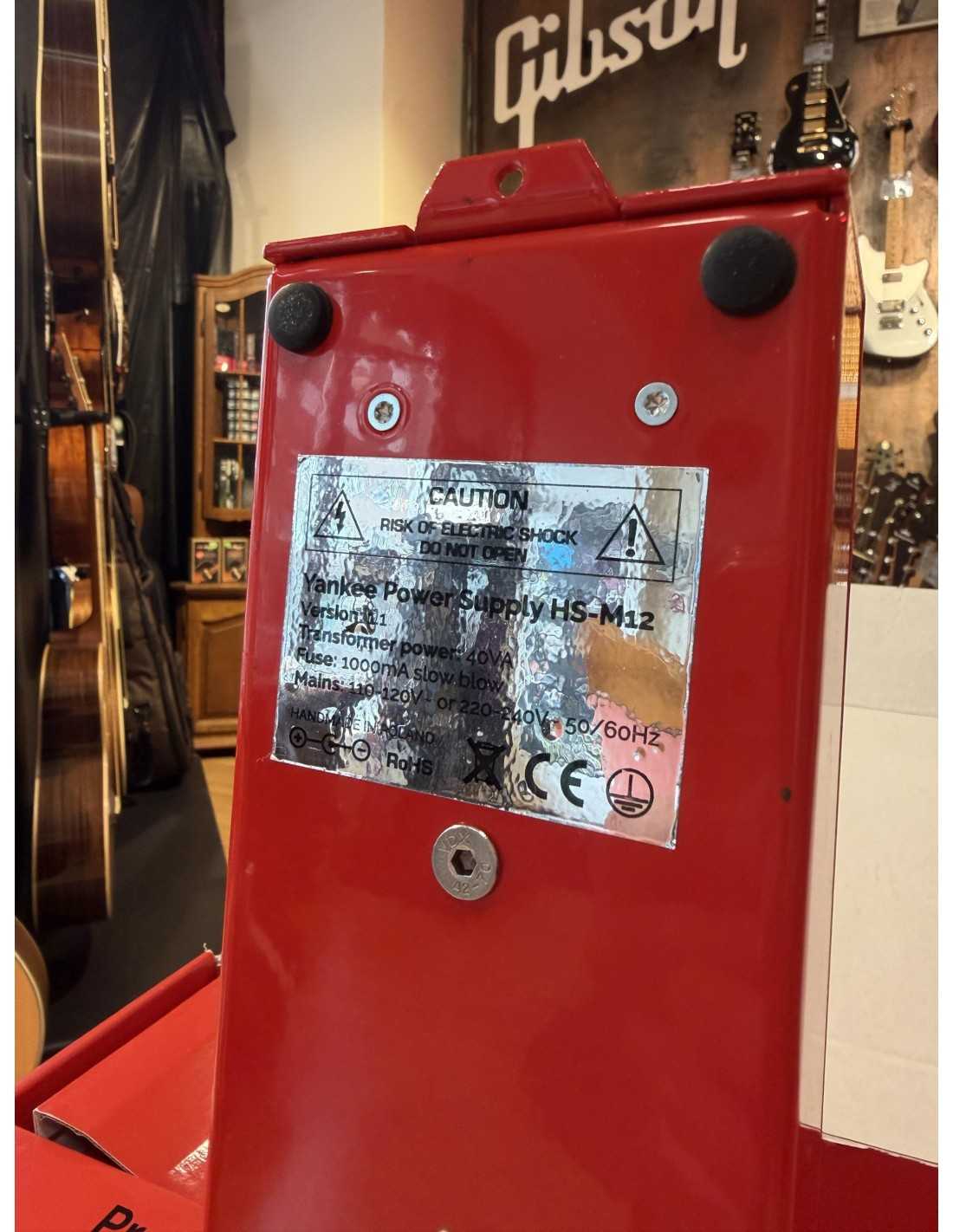

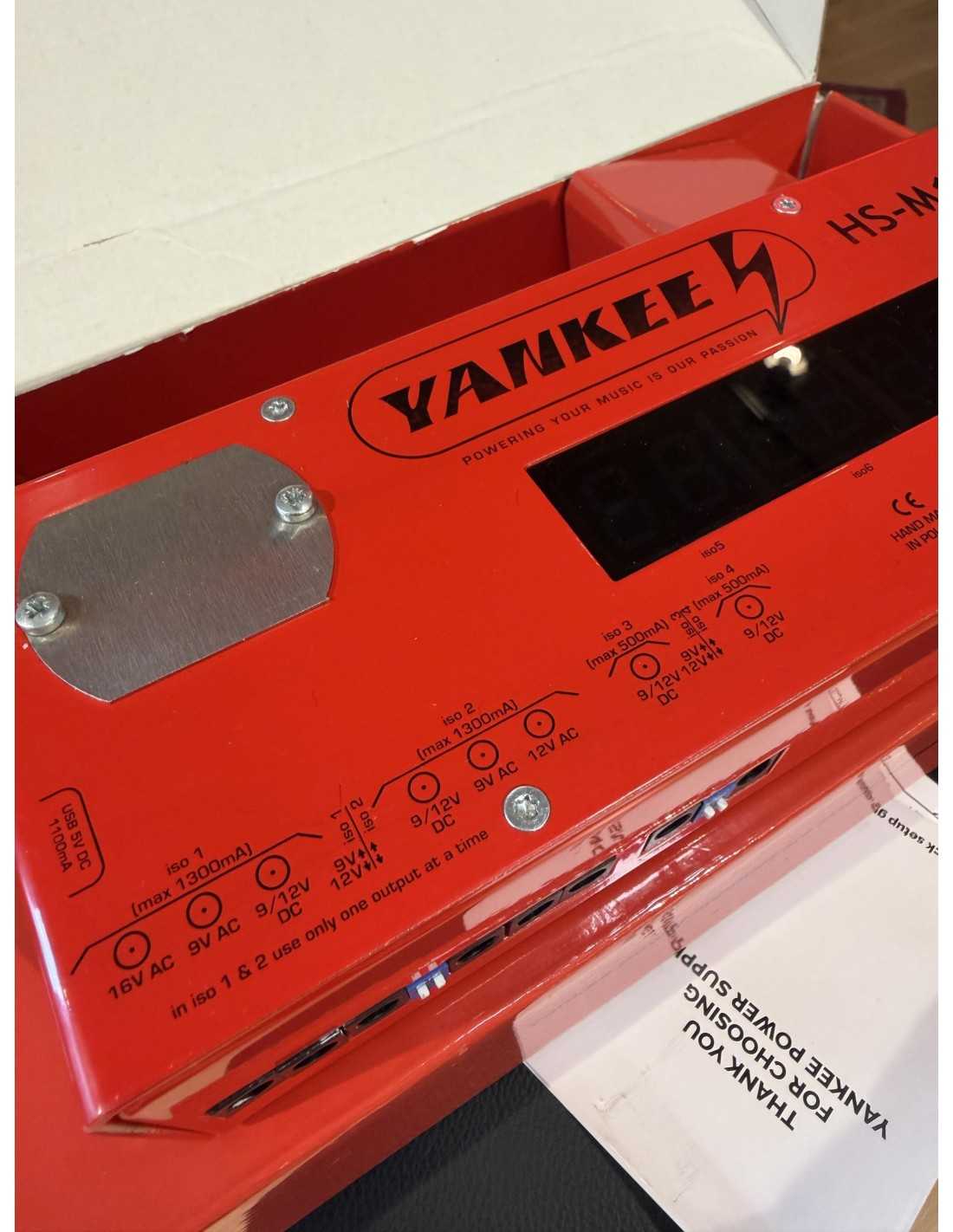

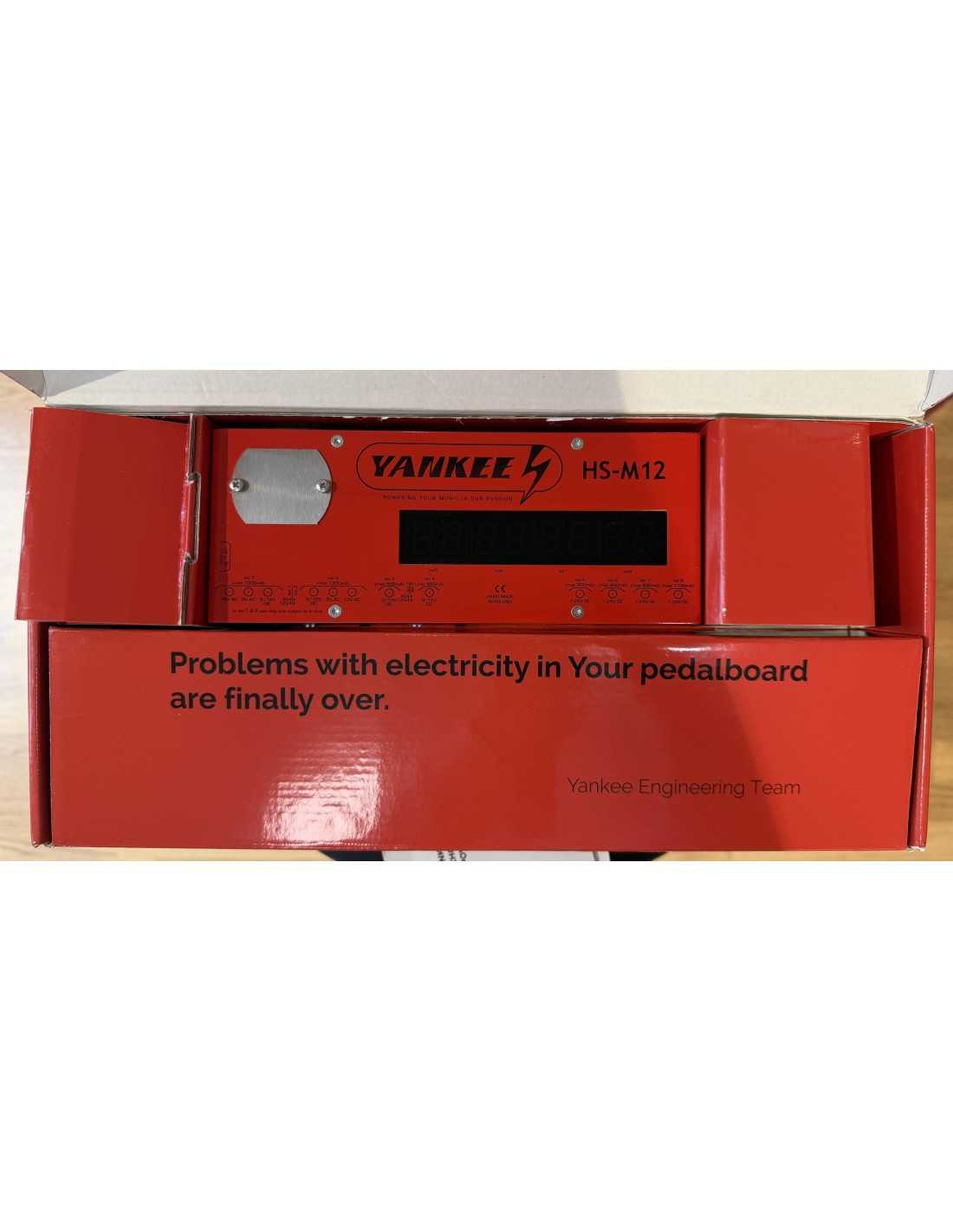

Yankee Power Supply HS-M12 Used
Yankee Power Supply HS-M12 Used
Yankee Power Supply HS-M12 Used
Yankee Power Supply HS-M12 Used
Yankee Power Supply HS-M12 Used
Yankee Power Supply HS-M12 Used
Yankee Power Supply HS-M12 Used
Yankee Power Supply HS-M12 Used
Yankee Power Supply HS-M12 Used
Yankee Power Supply HS-M12 Used
Yankee Power Supply HS-M12 Used
Yankee Power Supply HS-M12 Used
Yankee Power Supply HS-M12 Used
Yankee Power Supply HS-M12 Used

Yankee Power Supply HS-M12 Used

In Stock
€210.00
Dispatched within 1 day

Yankee HS-M12 is a professional guitar effects power supply with the ability to power almost every guitar effect available on the market. It is electronically advanced power supply with 8 fully isolated sections. It introduces worlds first stepless voltage regulation feature (1V – 24V DC) with the screen showing set voltage value.

  • Free shipping within Estonia to parcel terminals for all orders over 35€
  • 2 Year warranty on new items and 14 day return policy
  • Pay with credit card, Apple Pay, Baltic bank-links, Hire-Purchase or Paypal
  • Orders received on weekdays will ship out same or next day!


Yankee HS-M12 Power Supply features:

  • 8 high current outputs in eight fully isolated sections
  • 4 outputs with groundbreaking, stepless voltage regulation feature (1V – 24V DC), adjustable by multi-turn screw. The screen on the top is showing voltage value set on each output.
  • 2 AC outputs (9V, 12V or 16V) with 1300 mA or 2000 mA max current that can also be used as 9V or 12V DC
  • USB output that can charge mobile device or power LED lam to put some light on Your pedalboard
  • All outputs fully isolated and compatible with pedals running on 9V DC
  • Movable power socket (see pictures)
  • Assembled in durable aluminium housing, using highest quality material providing safety and durability
  • Powerfull, highest quality Toroidal Transformer that will not cause any unwanted noise, even when put directly next to effects
  • Efficient voltage filters and stabilizers for perfect sound during whole performance
  • Overheat and short circuit protection will always keep Your effects safe
  • Fits under Pedal Train and can be easily attached to any pedalboard with screws
  • Dimensions: 50mm x 213mm x 84mm
  • Power input: switchable 230V/110V

Technical specification:

  • Section Voltage setup Max current draw
  • I-  9V or 16V AC 1300mA
  • 9V DC 1300mA
  • 12V DC 950mA
  • II - 9V or 12V AC 1300mA
  • 9V DC 1300mA
  • 12V DC 300mA
  • III – IV 9V DC 500mA
  • 12V DC 330mA
  • V – VII 9V DC 800mA
  • 12V DC 700mA
  • 15V DC 570mA
  • 18V DC 440mA
  • 20V DC 350mA
  • 22V DC 270mA
  • 24V DC 180mA
  • VIII - 1V – 22V DC 1100mA
  • 23V – 24V DC 750mA
  • IX- 5V DC                 1100mA

IMPORTANT!

  • All DC outputs are 5,5 x 2,1mm barrel connectors, center negative. All AC outputs are 5,5 x 2,5mm barrel connectors.
  • In each section only one output with one voltage setup can be used at a time.
  • Max power of HS-M12 transformer is 40W. Use only 1000mA fuse.
HS-M12
Used
