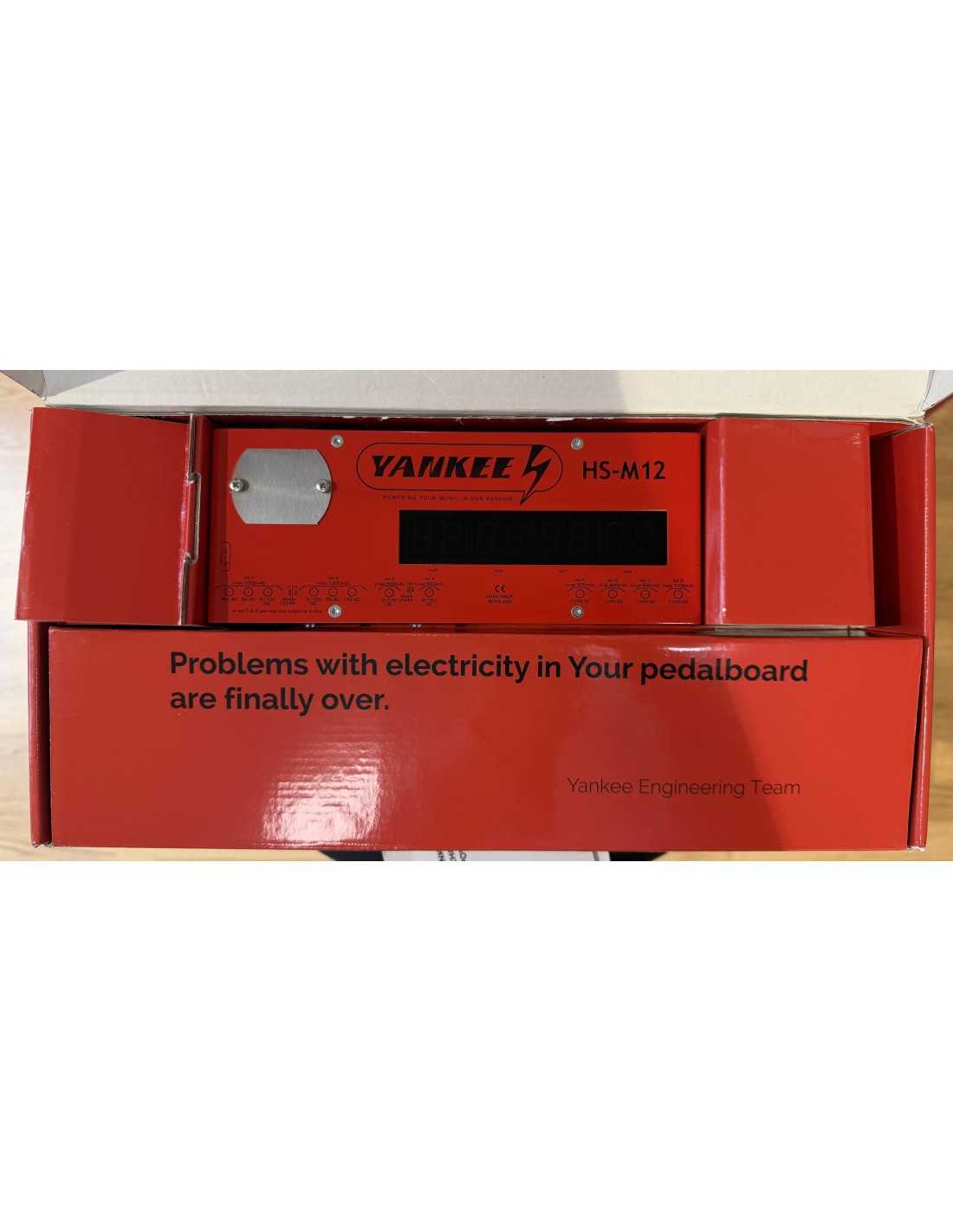

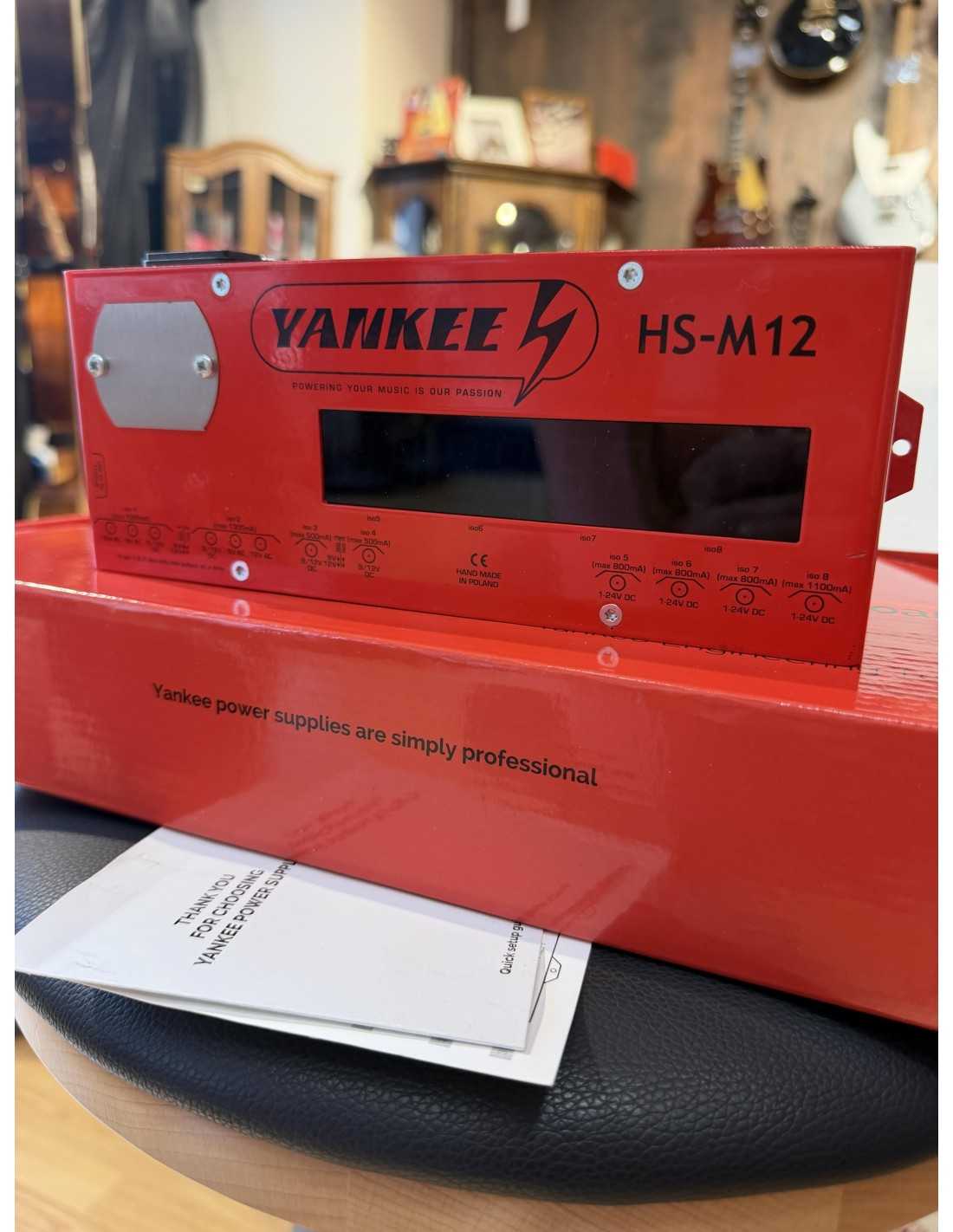

Yankee Power Supply HS-M12 Kasutatud

Yankee HS-M12 Power Supply features:

• 8 high current outputs in eight fully isolated sections

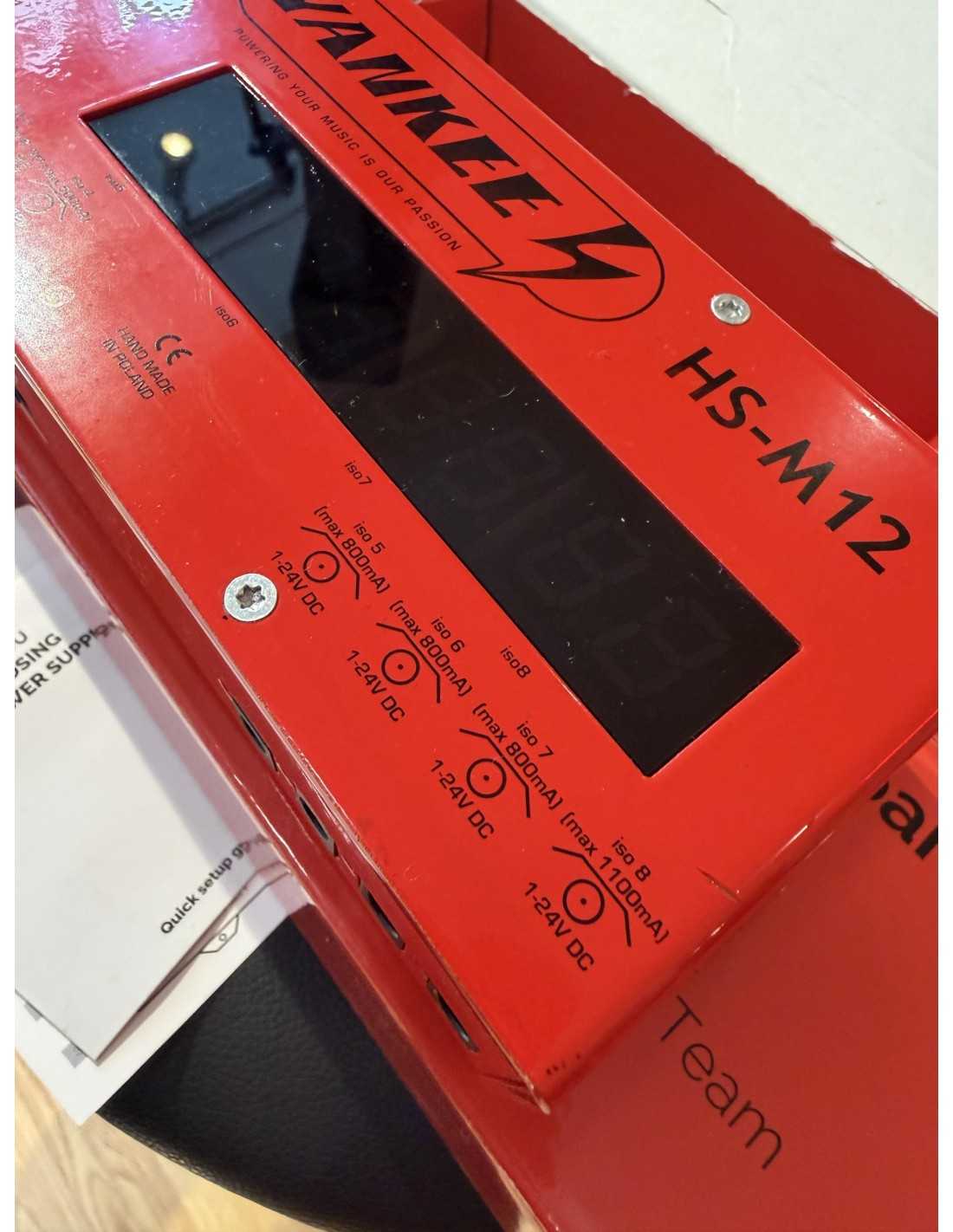

• 4 outputs with groundbreaking, stepless voltage regulation feature (1V – 24V DC), adjustable by multi-turn screw. The screen on the top is showing voltage value set on each output.

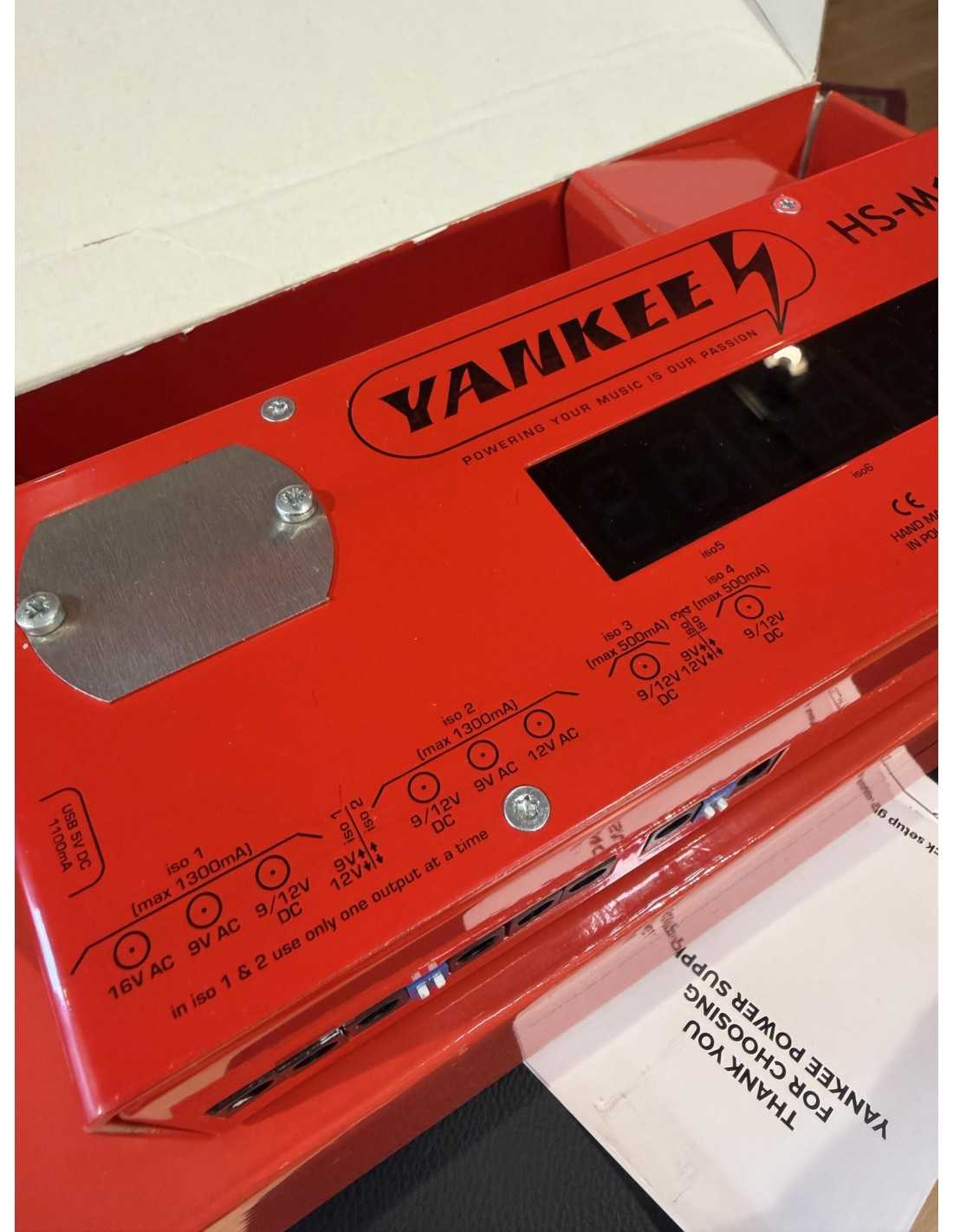

• 2 AC outputs (9V, 12V or 16V) with 1300 mA or 2000 mA max current that can also be used as 9V or 12V DC

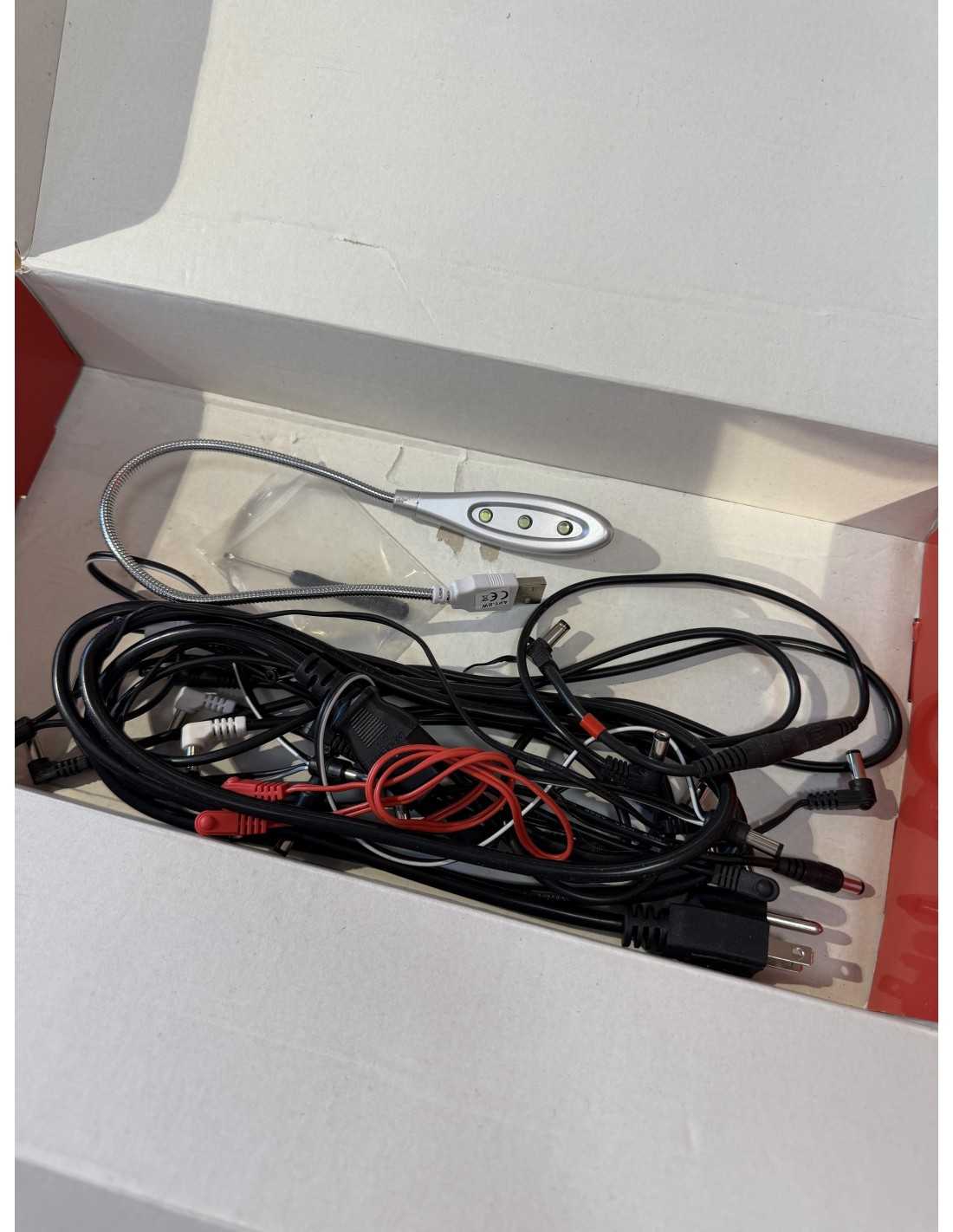

• USB output that can charge mobile device or power LED lam to put some light on Your pedalboard
• All outputs fully isolated and compatible with pedals running on 9V DC
• Movable power socket (see pictures)
• Assembled in durable aluminium housing, using highest quality material providing safety and durability
• Powerfull, highest quality Toroidal Transformer that will not cause any unwanted noise, even when put directly next to effects
• Efficient voltage filters and stabilizers for perfect sound during whole performance
• Overheat and short circuit protection will always keep Your effects safe
• Fits under Pedal Train and can be easily attached to any pedalboard with screws
• Dimensions: 50mm x 213mm x 84mm

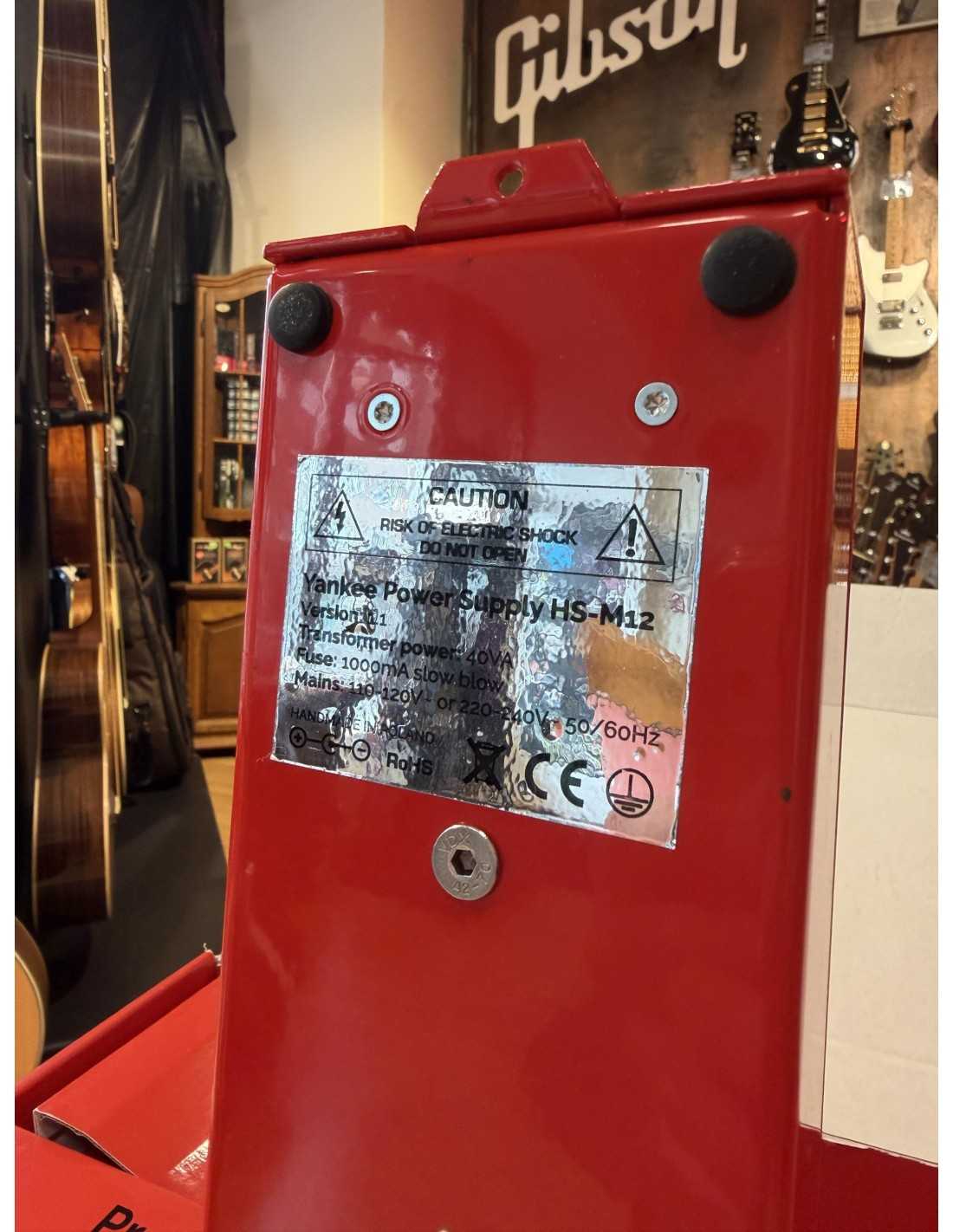

• Power input: switchable 230V/110V

Technical specification:

• Section Voltage setup Max current draw
• I-  9V or 16V AC 1300mA
• 9V DC 1300mA
• 12V DC 950mA
• II - 9V or 12V AC 1300mA
• 9V DC 1300mA
• 12V DC 300mA
• III – IV 9V DC 500mA
• 12V DC 330mA
• V – VII 9V DC 800mA
• 12V DC 700mA
• 15V DC 570mA
• 18V DC 440mA
• 20V DC 350mA
• 22V DC 270mA
• 24V DC 180mA
• VIII - 1V – 22V DC 1100mA
• 23V – 24V DC 750mA
• IX- 5V DC                 1100mA

IMPORTANT!

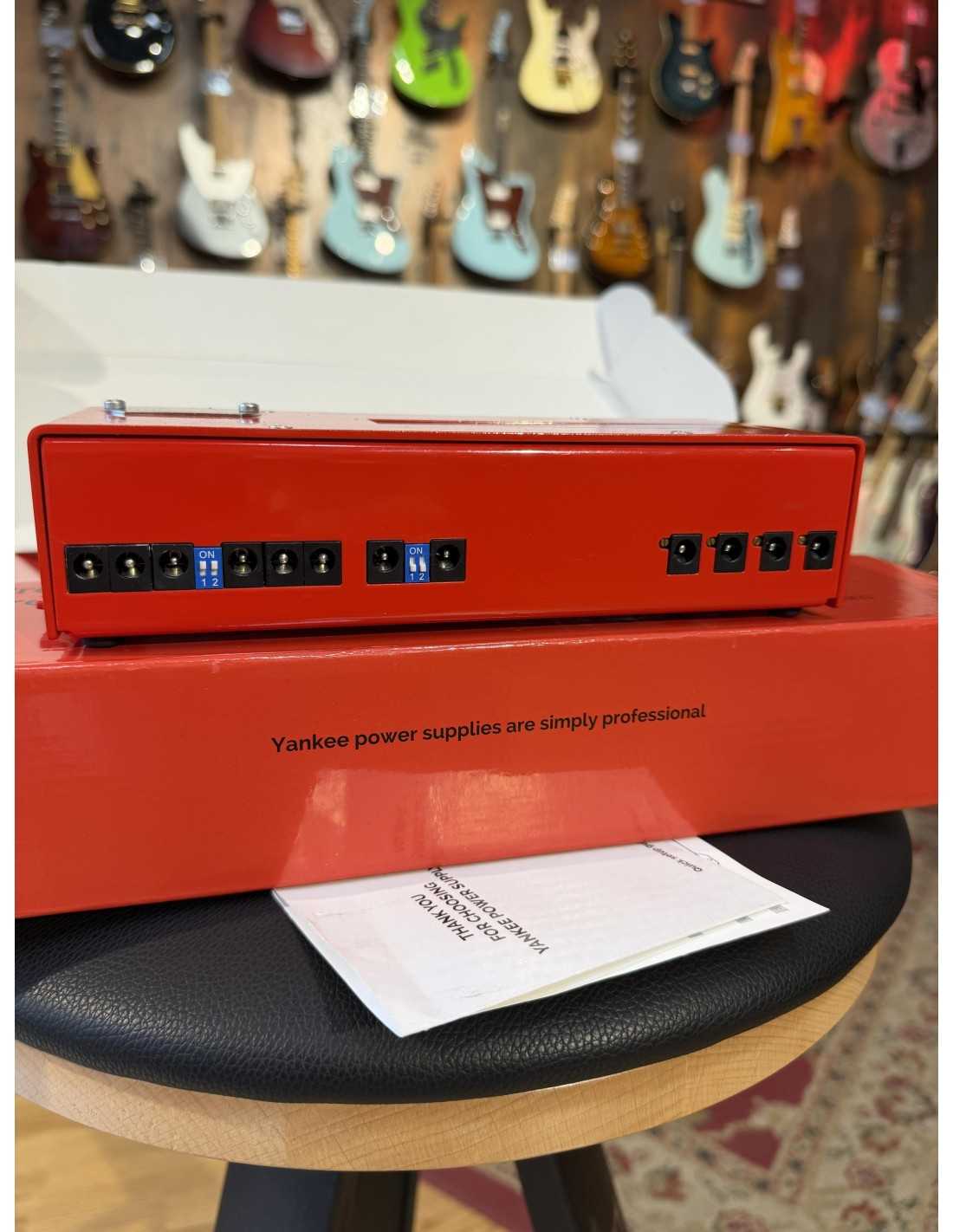

• All DC outputs are 5,5 x 2,1mm barrel connectors, center negative. All AC outputs are 5,5 x 2,5mm barrel connectors.
• In each section only one output with one voltage setup can be used at a time.
• Max power of HS-M12 transformer is 40W. Use only 1000mA fuse.
