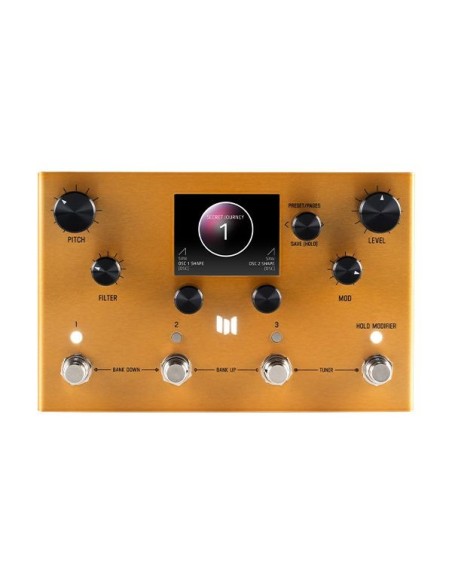

Meris Enzo X – A Supernova Expansion of Synth Pedal Technology
Introduction
The Meris Enzo X is the evolution of the original Enzo, expanding it into a powerful modular instrument synthesizer that redefines pedal-based synthesis. Featuring 6-voice polyphony, 5 synth modes, a deep modulation section, and multi-effect processing, Enzo X is the most advanced polyphonic synthesizer pedal ever made. With no special pickup required, it can transform any guitar, bass, or instrument into an expressive, dynamic synth.
At its core, Enzo X blends the award-winning UI architecture of the LVX and MercuryX with a high-fidelity analog/digital hybrid signal path. Whether you’re crafting vintage analog tones, cinematic soundscapes, or cutting-edge experimental textures, Enzo X is a powerful creative tool that unlocks new dimensions of sound.
Key Features
- Modular Synth Architecture – Inspired by Eurorack synthesis, with deep modulation and signal routing.
- 5 Synth Modes – Mono, Polyphonic, and Dry Processing for unmatched flexibility.
- 6-Voice Polyphony – Play rich, full chords with independent pitch detection.
- Polyphonic Pitch Tracking – No special pickup required; works with any instrument.
- Oscillator & Filter Customization – Choose SAW, TRIANGLE, and SQUARE waves with cross-modulation.
- Multi-Effect Processing – Includes 5 drive types, 5 modulation types, stereo delay, and reverb.
- Advanced Modulation – Custom Flanger and Phaser plus deep modifier routing.
- Intuitive Color Display UI – Adapted from LVX and MercuryX for easy real-time control.
- MIDI Integration – Full MIDI CC control, MIDI beat clock sync, and preset recall.
- 99 Presets & Favorite Bank – Store and instantly recall your favorite sounds.
- Stereo I/O with Switchable Headroom – Seamlessly integrates with instrument and synth setups.
- Analog Dry Path & 32-bit DSP Processing – Ensures pristine signal quality.
- Expression Pedal Support – Assignable to multiple parameters for expressive control.
- Premium Build Quality – Designed and manufactured in California, USA.
Detailed Technical Specifications
Audio Processing
- Premium Analog Front-End – JFET input section for natural dynamic response.
- 24-bit AD/DA Conversion with 32-bit Floating-Point DSP – Studio-quality sound.
- Digitally Controlled Analog Mix Bus – Maintains warmth and depth in your dry signal.
Effect Processing
- 5 Synth Modes – Mono, Poly, and Dry Processing modes for different playing styles.
- Waveform Selection – SAW, TRIANGLE, and SQUARE wave options for each oscillator.
- Drive Section – Includes 5 drive types, including Bitcrush distortion.
- Multi-Effect Section – Reverb (Prism algorithm), Delay (2.5s stereo), Flanger, Phaser, and Pitch Vibrato.
- Envelope Control – ADSR envelope generators for both amplitude and filter.
Signal Chain & Routing
- Modular Routing – Inspired by modular synth architecture, allowing complex sound design.
- Stereo Input & Output – Dedicated left/right channels for expansive stereo imaging.
- Configurable Input/Output Levels – Switch between Instrument and Synth/Line Level for different setups.

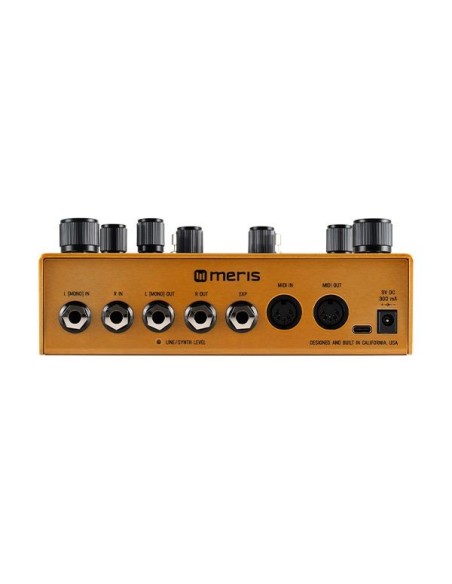

Inputs & Outputs
- Stereo 1/4” TS Instrument Inputs & Outputs
- MIDI In & Out – Standard 5-pin DIN jacks for full MIDI implementation.
- Dedicated Expression Pedal Input – Assignable to multiple parameters simultaneously.
USB & MIDI Features
- MIDI Beat Clock Synchronization – Sync delays and modulation effects to an external clock.
- MIDI Preset Management – Send and receive presets via MIDI for seamless integration with DAWs and live rigs.
- MIDI CC Control – Control key parameters with external MIDI controllers.
Control & Display
- Large Color Screen – Provides clear navigation and real-time feedback.
- Hold Modifier Switch – Allows expressive real-time effect manipulation.
- Tuner Mode – Instant access to a configurable tuner with reference adjustment.
Power & Build
- 9V DC, 280mA Current Draw (Power supply not included).
- Durable Metal Enclosure – Built for professional use.
- Dimmable Screen & Logo Light – Customize brightness for different environments.
Perfect for Every Setup
Whether you’re a guitarist, bassist, keyboardist, or experimental sound designer, the Meris Enzo X is a complete synthesis workstation in a pedal format. The deep MIDI control, modular routing, and stereo processing make it equally at home in a live pedalboard setup or a professional studio environment.
Use Enzo X for:
- Expressive lead synths – Transform your instrument into a monophonic or polyphonic synthesizer.
- Expansive sound design – Layer delay, reverb, and modulation for massive, cinematic textures.
- Classic analog tones – Achieve vintage Moog-style filter sweeps and detuned oscillators.
- Experimental processing – Use pitch vibrato and bitcrushing drive to create unique, futuristic sounds.
Conclusion
The Meris Enzo X is not just a pedal—it’s an entire modular synthesizer ecosystem packed into a compact, intuitive, and deeply powerful unit. Whether you want classic synth sounds, cinematic ambiance, or experimental textures, Enzo X provides limitless sonic possibilities.
Unveil the Universe Within.
