Each preset contains 5 PC commands and 5 CC commands.
MIDI input receives PC commands.

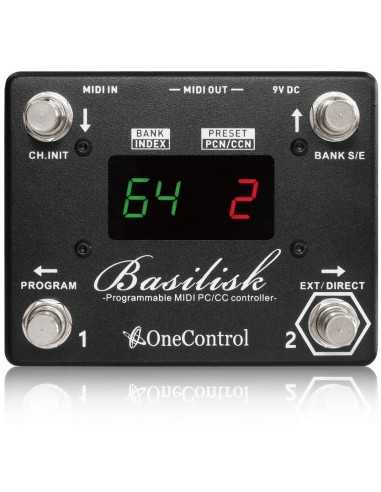

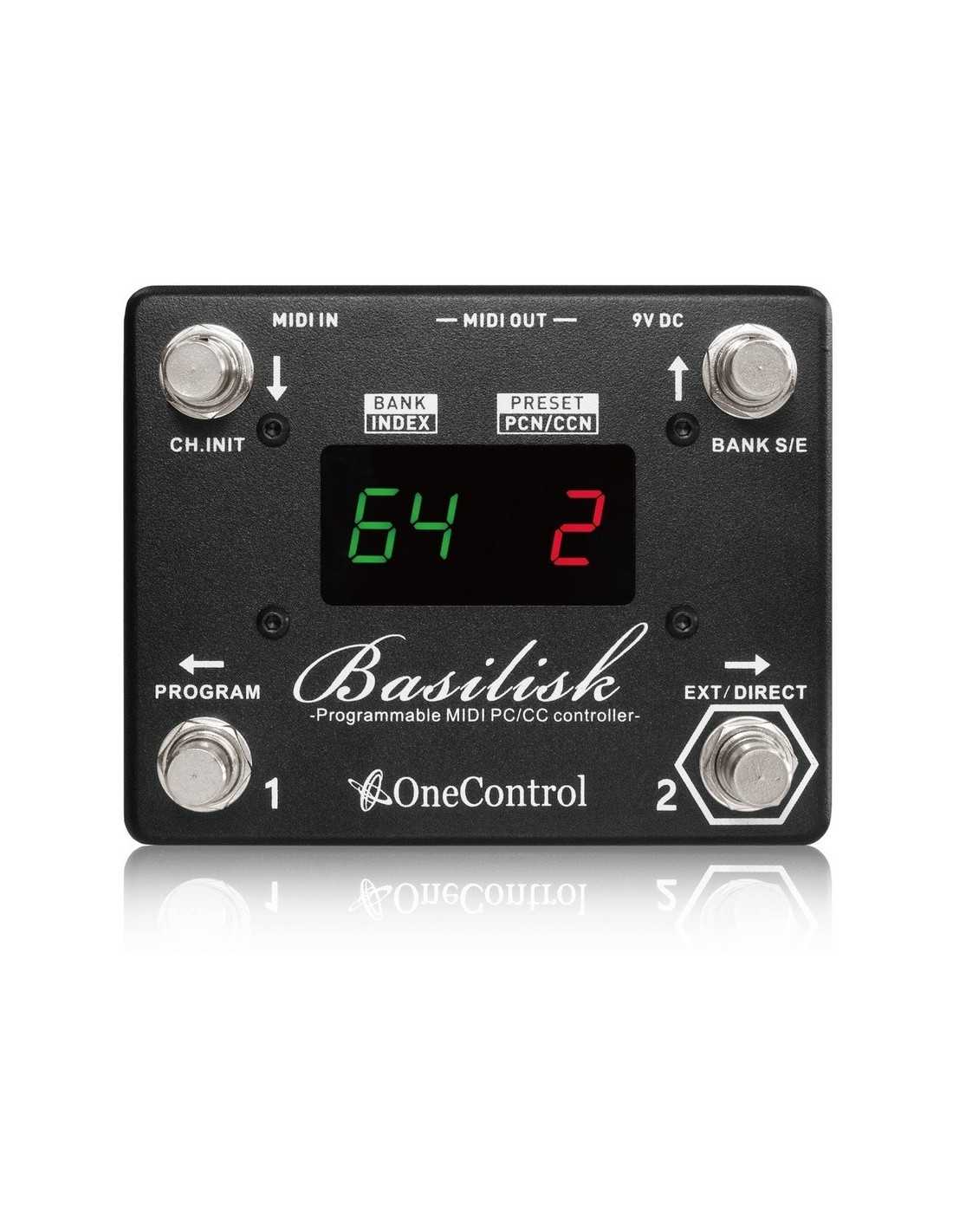

Interface is based on four silent footswitches. Lower switches activate preset 1 or 2 of the bank you are in. The upper footswitches scroll banks up and down.
Two MIDI outputs.
You can set the minimum and maximum numbers of banks that are scrolled through. If you only use a small number of banks, you don't need to scroll through them all.
Direct Access mode for quick use.
Power Requirements: 2.1mm 9V DC centre negative power supply. 30 mA.
Measurements: 11 cm (width) x 9,4 cm (depth) x 5,3 cm (heigh)
