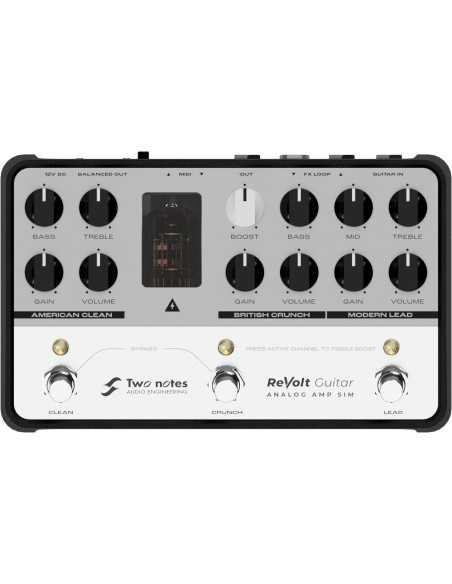

Two Notes ReVolt Guitar

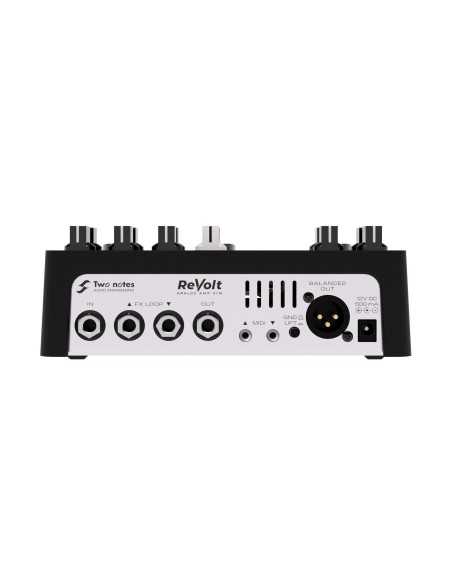

Input / Output

Input:
Jack 6.35 mm (1/4”) unbalanced (TS, Tip/Sleeve)
Impedance : 1 MOhms

Send:
Jack 6.35mm(1/4“) unbalanced (TS)
Max output level : +11dBu
Impedance : 300 Ohms

Return:
Jack 6.35mm(1/4“) unbalanced (TS)
Max input level : +11dBu
Impedance : 1 MOhms
Unbuffered, directly connected to Output when active

Output:
Jack 6.35 mm (1/4”) unbalanced (TS)
Max output level : +11 dBu
Impedance : 300 Ohms

DI Output:
XLR, balanced
Impedance : 600 Ohms balanced, 300 Ohms unbalanced
Max output level : +11dBu
Protected against +48V phantom power

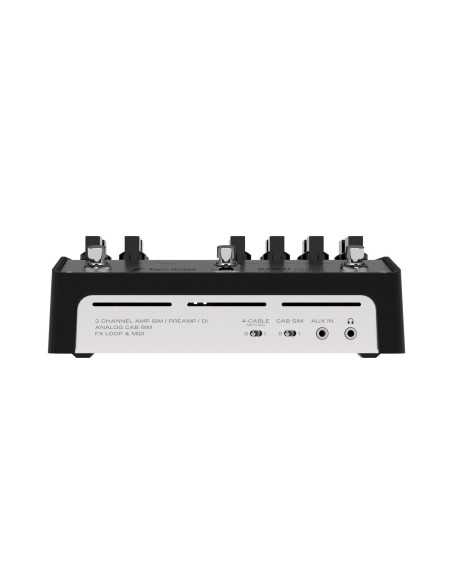

Phones:
Jack 3.5 mm (1/8“) stereo (TRS, Tip/Ring/Sleeve)
Impedance : 39 Ohms

Aux In:
Jack 3.5 mm (1/8“) stereo (TRS, Tip/Ring/Sleeve)
Impedance : 10 kOhms

Preamp

Tube:
PSVANE ECC83

Boost Circuit:
+0 dB to +20dB, centered around 1.1 kHz

Power

Mains power adaptor:
DC Jack 2.1mm, negative center

Input voltage:
12V DC

Power consumption:
Approx. 6W

Current draw:
600mA

Dimensions & weight

Width x Depth x Height*:
19.2cm x 11.7cm x 7cm – 7.6″ x 4.6″ x 2.8″
*Including connectors and knobs

Weight:
830 g / 1.82 lbs
